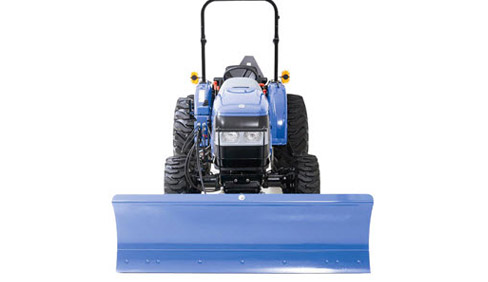

Browse EquipmentNew Holland 60CBH
Features
QUICK-ATTACH MODELS
The Quick-Attach system allows you to quickly change blades without tools and feature a spring-trip design, which allows the blade to pivot when it hits an obstruction. Reinforced moldboards provide extra protection against bending under difficult working conditions, and optional rubber cutting edges are available for delicate blade work.
HYDRAULIC ANGLING
Hydraulic power makes it easy to adjust the blade angle and height up to 30 degrees. An ergonomic joystick provides simple control of material delivery.
ADJUSTABLE SKID SHOES
Skid shoes prevent gouging by maintaining the blade at a preset height.
DURABLE, REPLACEABLE CUTTING EDGE
The cutting edge is made of heat-treated, high-carbon steel. It's replaceable and reversible and bolts on for long life and easy maintenance.
Specifications
| Specifications | 60CBH |
| Moldboard width | 60" |
| Moldboard height | 22" |
| Moldboard thickness | 1/4" |
| Cutting edge thickness | 1/2" |
| Cutting edge height | 6" |
| Reversible cutting edge | Standard |
| Blade lift height | 8" |
| Digging depth | 6.5" |
| Max blade angle | 30 degrees |
| Adjustable skid shoes | Standard |
| Quick Attach | Yes |
| Manual angle | n/a |
| Hydraulic angle | Standard |
| Weight | 399 lbs. |
