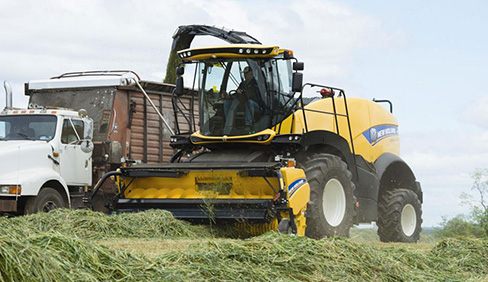

New Holland FR780

Double tap to zoom



Uncompromised throughput is the priority in Forage Cruiser design to maximize tons per hour.

The industry’s widest crop channel from feedrolls to spout flipper means a thin, controlled crop mat for best-in-class chop quality.

The quiet, spacious cab available features new seating options and comfort features.

Fuel-efficient engines and easy maintenance lowers your operating costs for higher profits.


Model FR780
Engine FPT Cursor 13*
Engine configuration and number of cylinders In-line 6
Displacement cu. in. (L) 970 (15.9)
Injection system Common Rail
Compliant with engine emissions regulations
Compliant with engine emissions regulations Tier 4B
ECOBlue™ HI-eSCR system (Selective Catalytic Reduction) Standard
Gross engine power @ 2100rpm - ISO TR14396 - ECE R120 [kW/hp(CV)] 530/721
Max. engine power @ 1700-2000rpm - ISO TR14396 - ECE R120 [kW/hp(CV)] 570/775
Torque @ 2100rpm ISO 14396 - ECE R120 ft. lbs. (Nm) 1778 (2410)
Torque @ 1700rpm ISO 14396 - ECE R120 ft. lbs. (Nm) 2362 (3202)
Maximum Torque @ 1500rpm ISO 14396 - ECE R120 ft. lbs. (Nm) 2451 (3323)
Torque rise (2100 to 1500rpm) % 38
Torque rise (2100 to 1700rpm) % 33
Approved biodiesel blend*** B5
Power Cruise™ II system Standard
Fuel consumption measuring and read-out on IntelliView™ IV monitor Standard
Air compressor Optional
Fuel tank
Diesel capacity gal. (l) 317 (1200)
AdBlue capacity gal. (l) 52 (200)
Feeding HydroLoc™ drive
Length of cut adjustment Infinite
Number of feed-rolls 4
Feed opening width in. (mm) 33.9 (860)
MetaLoc™ metal detection with position indication Standard
Dual Drive system (header hydrostatic drive) Standard
ActiveLOC™ active chop length control Optional
Cutterhead cylinder type V-shaped with 2 rows of knives
Cutterhead frame width in. (mm) 35.4 (900)
Cutterhead cylinder width in. (mm) 34.8 (884)
Cutterhead diameter (max / min) in. (mm) 27.9 / 27.2 (710 / 690)
Cutterhead speed at 2100 engine rpm 1130
Cuts per minute (2x8 knives) c/min 9,060
Length of cut range (2x8 knives) in. (mm) 0.2 - 1.3 (6 - 33)
Cuts per minute (2x10 knives) c/min 11,320
Length of cut range (2x10 knives) in. (mm) 0.2 - 1 (5 - 26)
Cuts per minute (2x12 knives) c/min 13,600
Length of cut range (2x12 knives) in. (mm) 0.2 - 0.9 (4 - 22)
Adjust-O-Matic™ shearbar setting Standard
Automatic knife sharpening system in forward or reverse Standard
Variflow™ system
Variflow™ system Shift between crops in under two minutes
Crop processor
Roll Width in. (mm) 29.5 (750)
Roll diameter in. (mm) 9.8 (250)
Cab Controled Gap Standard
Standard CP Standard
Rolls Sawtooth, 99/126 teeth, 30% Differential
Economy CP Standard
DuraCracker HDCP Optional
Rolls HD Sawteeth, 100/130 teeth, 30% Differential
DuraShredder HDCP Optional
Rolls HD Sawteeth, 110/138 teeth, 40% Differential
Blower rotor diameter in. (mm) 20.7 (525)
Blower rotor width in. (mm) 29.5 (750)
Blower speed at 2100 engine rpm rpm 2119
Spout maximum height in. (mm) 252 (6400)
Rotation angle degree 210
Spout extension (10-row corn header) in. (mm) 28.3 (720)
Spout extension (12-row corn header) in. (mm) 54 (1380)
Automatic spout functions (home and work positions) Standard
Spout side collision protection Standard
12 volt alternator standard Amps 240
Battery capacity CCA / Ah 2 x 800 / 107
Hydrostatic Standard
Gearbox 4-speed
Remote gearshifting Standard
Differential lock Standard
Mechanical powered rear wheels Optional
Maximum road speed @ 1200 rpm mph (kph) 25 (40)
Header control systems
Pressure compensation mode Standard
Autofloat™ system Standard
Mechanical Lateral flotation Standard
Power Reverse hydraulic header reverser Standard
Hydraulic quick coupler (single location) Standard
Automatic header speed synchronisation to forward speed Standard
Cab glass area
Cab glass area ft³ (m³) 240 (6.8)
Cab category level - EN 15695 1
LEO lighting pack Optional
Optimum cab noise level - ISO 5131 (dB(A)) 76
Deluxe cloth trimmed heated air-suspension seat with Active Ventilation Standard
Leather trimmed heated air-suspension seat with Active Ventilation Optional
Instructor’s seat Standard
CommandGrip™ handle Standard
IntelliView™ IV monitor with adjustable position Standard
Reversing camera Optional
Automatic climate control Standard
Removable coolbox Optional
Automatic greasing system Standard
Rear bumper with integrated water proof storage boxes Standard
New Holland Precision Land Management systems - PLM® Connect Telematics
PLM® Connect Telematics Optional
New Holland Precision Land Management systems - Guidance systems
IntelliSteer® system Optional
Automatic row guidance system for corn headers Optional
IntelliFill™ system Optional
Precision farming
Optional additive tank (with adjustable flow) capacity gal. (l) 100 (395)
Moisture measuring Optional
Yield measuring and moisture measuring Optional
Full Precision farming package including: Yield measuring and moisture measuring, DGPS yield mapping Optional
Full Precision farming package including: PLM desktop software and software support service Optional
Weight**** lbs. (kg) 30,100 (13650
