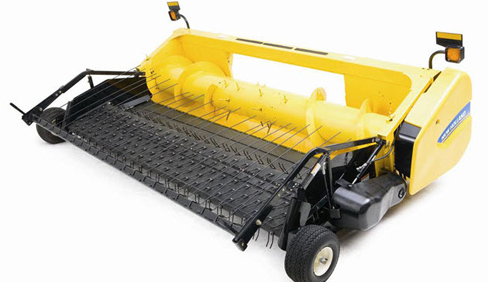

New Holland 790CP-15Foot
A CLEAN FIELD IS A NEW HOLLAND FIELD
Ideal for small grain and specialty crops, such as canola and grass seed, the 12- and 15-foot 790CP windrow pickup heads are designed to gather wider windrows, operate at faster field speeds and reduce seed loss to boost your harvesting productivity.
The flexing pickup frame allows up to 12 inches of flex within the frame to smoothly follow rough terrain. You can adjust the ground force of the mechanical suspension easily using a single wrench. A hydraulic float option allows you to change flotation sensitivity on the fly from the cab for optimum flotation over rough fields.
EFFICIENT AUGER PERFORMANCE
Auger speed is an impressive 212 rpm on 15-ft headers which enables high forward speeds to enhance overall machine capacity. The auger features double "V" pattern tines which ensure the crop is cleanly fed into the feeder. The tines, together with the reduced clearance of the auger fingers, auger flight floor and auger clearance, provent wrapping to significantly improve in-field productivity and prevent potential damage while improving grain quality.
SAVE MORE GRAIN AND SEEDS
Both the 12- and 15-foot models feature standard front and rear windguards to ensure even crop flow into the combine. And, both models use fewer belts than competitive models, reducing the risk of seed loss between belts. Taller, square cleats “paddle” the seed to the auger. The picking belt gently and efficiently transfers the crop onto the slatted transfer belt. This positive pickup action ensures continued harvesting productivity, even in rained down or sprouting crops. A seed dam is an integrated part of the design—not a rubber add-on—and is located between the rear transfer belt roller and the floor, preventing losses to collect all the grain you pick.
A 26-inch-diameter floating auger with five-inch flighting handles heavy crop and feeds it smoothly into the combine. Adjusting the auger up and down has been simplified. The auger can be locked or set to allow either 5/8" or 1-1/4" of float to handle slugs. A double drive sprocket allows you to slow or speed up the auger to match your needs. A double V pattern provides clean, even sweeping into feeder and prevents material wrapping and carry over. Auger fingers can be replaced easily by removing spring pin from plastic holder. Tines require no tools for assembly and you can adjust pitch with a single pin and handle.
|Model||790CP - 15 Foot|
|Construction||Full welded construction|
|Top beam HSS tubing, in. (mm)||6 x 6 x .125 (150 x 150 x 4)|
|Lower beam||Fabricated trapezoid, 0.12" (3 mm)|
|Welded in backsheets, in. (mm)||-3|
|Welded in auger floor thickness, in. (mm)||-4|
|Fabricated center tube, in. (mm)||16 (406) OD|
|Flighting depth, in. (mm)||5 (154)|
|OD, in. (mm)||26 (660)|
|Flight thickness, in. (mm)||0.25 (6)|
|Pitch flights, in. (mm)||20 (508)|
|Bolt on flight extensions||Standard|
|Sprockets||138 rpm standard, optional driven sprockets|
|Auger fixed or allowed a 5/8" or 1.25" of float||Standard|
|Adjustable timing on RH end||Standard|
|Full length fingers||Standard|
|Double V pattern retractable fingers||Standard|
|Steel fingers - 16mm OD||Standard|
|Plastic finger holders||Standard|
|Break groove in finger||Standard|
|Rubber finger retainer - patent pending||Standard|
|Plastic recessed finger guides||Standard|
|Auger speed, rpm||187 / 160|
|LH drive only||Direct drive from feeder drive shaft to auger stub shaft|
|Drive protection||626 ft-lb (850 Nm) radial pin slip clutch|
|Chain tension adjustment||A push plate and jam nuts|
|Overall width, in. (mm)||204 (5175)|
|Fixed wheels, in. (mm)||211 (5365)|
|Castor wheels, in. (mm)||225 (5720)|
|Shipping weight, lbs. (kg)||3180 (1442)|
