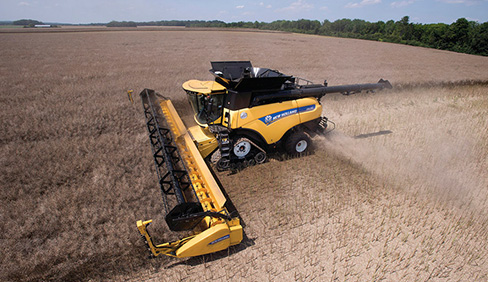

New Holland 760CG Varifeed - 35 ft
ADAPT TO ALL TYPES OF CROP
For optimum harvest quality and a uniform cut in different crop heights, including tall, bushy, direct-cut canola, the Varifeed™ grain head is your perfect partner. The 30, 35, and 41 Ft. models allow you to harvest at high field speeds to make full use of the high capacity of New Holland combines
EFFORTLESS, ON-THE-GO KNIFE ADJUSTMENT
You can adjust knife position a full 23 inches fore and aft so you can regulate the flow of crop right from the cab for ideal feeding. With the varying distance between knife and intake auger, the header reel plays a more important role in crop guidance and crop feeding. You can also adjust the reel electro-hydraulically in all directions from the cab for smooth, continuous feeding. If you direct-cut canola, Varifeed heads are ideal since the 23 inches of floor travel allow ample room for the bushy canola crop. The header floor remains closed in all knife positions, without the need for filler plates or drive belt changes.
FULLY INTEGRATED SIDE KNIVES
Optional 18-teeth vertical side knives are ideal to direct cut canola or other bushy crops. They slice through matted crops and are controlled through the IntelliView™ IV color touch-screen monitor. When not required, they can be stored on the header itself. Read More LARGE-DIAMETER AUGER The 26-inch-diameter auger with deep flights provides fast, smooth feeding even in the heaviest crops. Full-width retracting fingers between each auger flight move crop down and under the auger.
Rugged frame construction and heavy-duty features like the high-speed knife drive, the extended reach of the reel tines and hydraulic reel drive help assure reliable cutting, ample torque and feeding capacity in heavy crops.
|Model||760CG Varifeed - 35 ft.|
|Cutting width (ft)||35|
|Knife speed (cuts/min.)||1,300|
|Knife drive||Single (Left hand side)|
|Knife stroke (in.)||3|
|Spare knife and spare bolted knife sections||Standard|
|Vertical knife flexibility (in.)||-|
|Dual knife drive||-|
|Knife travel (in)||23|
|Feeding auger with full-width retractable fingers||Standard|
|Feeding auger diameter (in)||26|
|Auger speed (rpm)||-|
|Reel diameter (in)||42|
|Hydraulic reel drive||-|
|Distance between knife and in take auger (in)||13.7-36.7|
|Plate point short divider||Optional|
