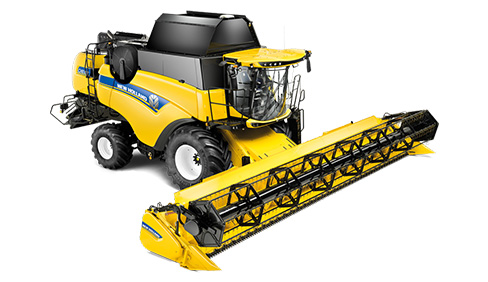

New Holland CX8.90
WORLD’S MOST POWERFUL CONVENTIONAL COMBINE
If you are looking for the ultimate Super Conventional combine, at 490 hp, the CX8.90 delivers unsurpassed power and capacity.
The industry-leading Harvest Suite™ Ultra cab offers oceans of space and whisper-quiet operation.
LOWER OPERATING COSTS
CX8 engines supply environmentally friendly power as well as lower running costs due to efficient, precision fueling.
PERFECT RESIDUE MANAGEMENT
Opti-Spread™ is a dream for customers harvesting with wide heads, allowing wide and even residue distribution.
A NEW BENCHMARK FOR HARVESTING COMFORT
The CX8.80 and CX8.90 combines quite simply offer you a home away from home during long harvesting days and nights. The Harvest Suite™ Ultra cab is completely new to CX combines, and is the result of extensive customer consultation. The cab is larger with 130.5 ft³ volume and boasts 68 ft² of glass, 7% more than previous models. You can enjoy all that space in the peace and quiet of the near-silent 73 dB(A) cab. For enhanced comfort during long harvesting days, a removable fridge located beneath the instructor seat is standard.
SHINING A LIGHT ON HARVESTING EXCELLENCE
The CX8 Series lighting package raises the lighting bar. The spread of light is precision engineered for maximum visibility of the entire head and the field ahead and behind. You can expect precision unloading in the dead of night. You’ll never lose a single grain thanks to a specific unloading auger light. You even have the choice of a full LED work light package and LED far distance lights to provide visibility up to 1,600 ft ahead. Another innovation from New Holland.
ARE YOU SITTING COMFORTABLY?
Choose from three seating options:
• The standard wide cloth-trimmed seat provides exceptional features and ensures all operators will stay comfortable throughout the longest harvesting day.
• The optional deluxe cloth-trimmed seat with heating and active ventilation is perfect for the hottest days and the coldest nights, and features fore/aft movement for even more comfort.
• The top-of-the-line leather-trimmed seat features all the above as well as extended vertical travel and automatic weight adjustment that absorbs even the most severe bumps to offer the ultimate in operator comfort and style.
|Cutting width (ft.)||20 - 41|
|Number of rows Folding corn heads||8|
|Number of rows Rigid corn heads||6 - 12|
|Head control systems|
|Terrain Tracer system||Standard|
|Front face adjustment||Standard|
|Harvest Suite™ Ultra cab|
|Harvest Suite™ Ultra cab glass area (ft²)||68|
|Cab category level - EN 15695||2|
|LED working lighting pack||Optional|
|LED long distance lighting pack||Optional|
|Standard cloth trimmed seat with air-suspension||Standard|
|Deluxe cloth trimmed heated air-suspension seat with Active Ventilation||Optional|
|Leather trimmed heated air-suspension seat with Active Ventilation and lateral suspension||Optional|
|Leather Steering wheel||Standard|
|IntelliView™ IV monitor with adjustable position||Standard|
|2nd IntelliView™ IV monitor||Optional|
|Integrated fridge under the instructor seat||Standard|
|Optimum cab noise level - ISO 5131 (dB(A))||73|
|New Holland Precision Land Management systems|
|IntelliSteer™ ready automatic guidance system||Standard|
|Automatic row guidance system for corn heads||Optional|
|Yield measuring and moisture measuring||Standard|
|PLM® desktop software||Standard|
|Wrap angle (degrees)||111|
|Opti-Speed™ variable strawwalker speeds||Standard|
|Self-levelling cleaning shoe||Standard|
|Opti-Clean™ cleaning system||Standard|
|Capacity manual extensions / remote covers (bu)||350 / 355|
|Type*||FPT Cursor 9*|
|Complaint with Tier 4 emission regulations||Tier 4B|
|ECOBlue™ SCR system (Selective Catalytic Reduction)||Standard|
|Gross engine power @ 2100 rpm - ISO 14396 - ECE R120 [hp(CV)]||449|
|Maximum engine power @ 2000 rpm - ISO 14396 - ECE R120 [hp(CV)]||490|
|Approved Bio Diesel Blend||B20**|
|Fuel tank capacity (gallons)||265|
|DEF tank capacity (gallons)||32|
|Maximum speed standard (mph)||19|
|Maximum speed optional (mph)||25|
|Opti-Spread™ residue management||Optional|
|Integrated straw chopper||Optional|
|Dimensions with traction wheels****|
|Dimensions with traction wheels||900/60R32|
|Maximum height in transport position (ft.)||13|
|Maximum width - transport (ft.)||12.9|
|Weight without header, chaff spreader or straw chopper and empty fuel tank (lbs.)||35,349|
