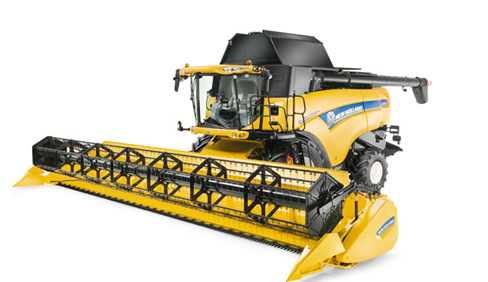

New Holland CX8080 Elevation

Features
Super clean, Super efficient
The CX8000 Elevation combines are fitted with ECOBlue™ SCR engines which comply with the stringent Tier 4A emissions regulations. Want more? How about a cool 10% fuel savings which will help reduce your input costs to make your CX Elevation combine even more efficient.
INTELLISTEER™: A SMARTER WAY TO HARVEST
All CX8000 Elevation combines can be ordered direct from the factory with IntelliSteer™ – New Holland’s fully integrated auto guidance package. Fully compatible with the most accurate RTK correction signals, the IntelliSteer™ system can guarantee pass-to-pass and year-to-year accuracy of under an inch.
Super-size Tires, Super-small impact
All models are fully compatible with the tallest 620/70/R42 dual tires. These ultra tall tires deliver the very widest footprint, to reduce in-field compaction for increased future yields. It’s a win-win situation.
Productive 25-MPH transport
The CX8000 Elevation Series are the fastest conventional combines around. The super-fast optional 25-mph top transport speed is achieved at engine speeds as low as a mere 1,600 rpm. The result? You spend more time in the field during tight harvesting windows and less time on productivity-reducing transport. Want more? How about exceptional fuel economy and reduced in-cab noise!
Flexible heads offering
The CX8000 Elevation combines are fully compatible with the very largest heads. Whether you choose the draper, pick-up, SuperFlex, corn or Varifeed heads, the CX will clear even the largest fields in the blink of an eye.
Specifications
CX8080 Elevation | |
Combine Class | |
Combine Class | 7 |
Grain heads | |
Cutting width [ft. (m)] | 20-35 (6.1 - 10.67) |
Corn heads | |
Number of rows > Folding corn heads (rows) | 6-8 |
Number of rows > Rigid corn heads (rows) | 6-10 |
Automatic header control systems | |
Autofloat™ system | Standard |
Straw elevator | |
Front face adjustment | Standard |
Lateral Flotation | Standard |
Cab | |
Leather air-suspension seat | Optional |
Instructor's seat | Standard |
IntelliView™ IV monitor with adjustable position | Standard |
Automatic climate control and coolbox | Standard |
Automatic climate control and fridge | Optional |
New Holland Precision Land Management systems - Guidance systems | |
IntelliSteer™ automatic guidance system | Optional |
IntelliCruise™ System | Optional |
Automatic row guidance system for corn heads | Optional |
New Holland Precision Land Management systems - Precision farming | |
Moisture measuring | Optional |
Yield measuring and moisture measuring | Optional |
Full Precision farming package including yield measuring and moisture measuring, DGPS yield mapping | Optional |
PLM™ desktop software and software support service (1 year) | Optional |
Threshing drums | |
Width [in. (m)] | 62 (1.56) |
Diameter [in. (m)] | 29.5 (0.75) |
Drum Concave | |
Area [sq.in. (m²)] | 1829 (1.18) |
Wrap angle (degrees) | 111 |
Beater | |
4 paddles and 4 teeth rows (alternating) [in. (m)] | 18.75 (0.475) |
Rotary Separator | |
Rotary Separator | Standard |
Multi-Thresh™ system | Standard |
Strawwalkers | |
Number | 6 |
Opti-Speed™ variable strawwalker speed | Standard |
Cleaning | |
Self-levelling cleaning shoe | Standard |
Opti-Clean™ cleaning system*** | Standard |
Cleaning fan | |
Opti-Fan™ system | Standard |
Grain tank | |
Capacity with remote foldable covers [bu. (l)] | 326 (11,500) |
Capacity with manual foldable extensions [bu. (l)] | 350 (12,300) |
Engine* complaint with Tier 4 emission reguations | |
Engine* complaint with Tier 4 emission reguations | FPT Cursor 9* |
ECOBlue™ SCR system (Selective Catalytic Reduction) | Standard |
Gross engine power @ 2100 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] | 265/360 |
Maximum engine power @ 2000 rpm - ISO 14396 - ECE R120 [kW/hp(CV)] | 295/401 |
Approved Biodiesel Blend | B20** |
Fuel tanks Diesel / AdBlue capacity | |
Fuel tanks Diesel / AdBlue capacity [gal. (l)] | 265/32(1000 / 120) |
Transmission type | 4-speed hydrostatic |
Maximum speed standard / optional [mph. (kph)] | 19 / 25 (30 / 40) |
Residue management | |
Integrated straw chopper | Standard |
Chaff spreader | Optional |
Dimensions with traction wheels (****) | |
Dimensions with traction wheels (****) | 900/60R32 |
Wheelbase [ft. (m)] | 12'4" (3.76) |
Maximum height in transport position [ft. (m)] | 13' (3.96) |
Maximum width - transport [ft. (m)] | 12'9" (3.9) |
Weight | |
Weight without hreader, chaff spreader and straw chopper [lbs (kg)] | 17,198 (7800) |
