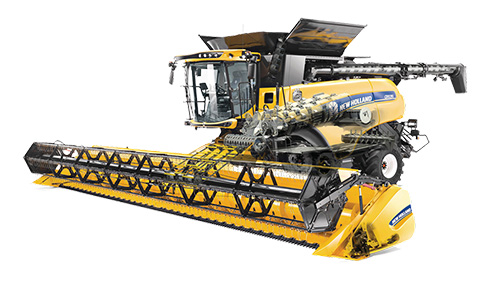

New Holland CR10.90 Elevation
A NEW BENCHMARK FOR HARVESTING COMFORT
The Harvest Suite™ Ultra cab offers you a home away from home during long harvesting days and nights. This cab is completely new from the floor up and is the result of extensive customer consultation. It’s larger with 68 ft2 of glass--7% more than previous models. More space and more glass mean more comfortable and precise harvesting. You can enjoy all that space in the peace and quiet of the near silent 73dB(A) cab.
ARE YOU SITTING COMFORTABLY?
Choose from three seating options:
1. The standard wide cloth-trimmed seat provides exceptional features and ensures all operators will stay comfortable throughout the longest harvesting day.
2. The optional deluxe cloth-trimmed seat with heating and active ventilation is perfect for the hottest days and the coldest nights, and features fore/aft isolation for even more comfort.
3. The top-of-the-line leather-trimmed seat features all the above and extended vertical travel and automatic weight adjustment that absorbs even the most severe bumps to offer the ultimate in operator comfort and style.
360 PANORAMIC VIEW
The Harvest Suite™ Ultra cab’s wide curved window offers a perfect view. The floor slopes down into the front windscreen so that you will have an even clearer view of the edge of the header, and the side glass perfectly follows your headers trajectory for an uninterrupted view of the unloading auger. Standard wide-angle electric mirrors mean you can see in all directions, and can position them easily from the comfort of the cab. You can manage up to three optional viewing cameras through each IntelliView™ IV monitor, and one can be pre-wired for reversing. They are the eyes in the back of your head when unloading, reversing or checking the grain tank level.
BRIGHT LIGHTS FOR DARK NIGHTS
The CR’s lighting package has raised the lighting bar. The spread of light has been precision engineered for maximum visibility of the entire header and the field ahead and behind. Precision unloading in the dead of night. You’ll never lose a single grain thanks to a specific unloading auger light. Additional rear lamps enable operators to monitor residue and two lamps located on the side panels illuminate the rear axle to prevent running down standing crop and to assist when maneuvering. You even have the choice between halogen and two LED packages. You can also exit your combine in complete safety courtesy of the entrance light, which remains on for 30 seconds after you’ve switched the combine off.
STAY REFRESHED ON THE HOTTEST DAYS
During long hot harvesting days, the standard integrated fridge under the instructor seat means a refreshing drink is only an arm’s length away. And, it can be removed easily for easy replenishment. The Automatic Temperature Control (ATC) system comes as standard equipment and automatically adjusts fan speed to guarantee accurate temperature to within one degree. The Harvest Suite Ultra cab is definitely the coolest place to be.
EFFORTLESSLY MAXIMIZE YOUR PERFORMANCE
Intelligent and intuitive automation saves time and enhances harvesting performance. The CommandGrip™ multi-function handle is your right-hand harvesting man. You control all key machine and header parameters, including header height, reel position and unloading engagement. The right-hand console contains less frequently used functions, which are laid out in an ergonomic and logical manner. You monitor machine functions at a glance courtesy of the color IntelliView™ IV display.
A PLACE FOR EVERYTHING
You now have space to store everything you need. A large compartment behind the operator is perfect for stowing away essential documents.
The ultra-wide 10.4-inch IntelliView™ IV color touchscreen display is mounted on rollers which allow it to move along an ideal viewing arc so you can position it just where you want. This intuitive display allows you to monitor all combine functions and change views by simply touching the screen. A second screen can be installed on request and is perfect for IntelliSteer™ auto guidance tasks or for displaying camera views.
ENHANCED PROTECTION FOR IMPROVED EFFICIENCY
The CR’s feeding system has been significantly upgraded to enhance its already highly efficient operation. The feeder features four chains with connecting slats on the CR8.90, CR8.90 Elevation, CR9.90, CR9.90 Elevation and CR10.90 Elevation models for improved crop flow and even smoother feeding into the Twin Rotors®. The CR line benefits from an impressive header lift capacity for ultimate productivity when working with the very largest headers, and you can choose between the Advanced Stone Protection system or the optional, Dynamic Feed Roll™ system which both ensure the threshing mechanism is always fully protected.
DYNAMIC FEED ROLL™ SYSTEM OPTION
This on-the-go mechanical system delivers maximum feeding efficiency and stone detection effectiveness in extremely stony conditions. Stones are automatically directed by an 18-inch-diameter closed beater into a dedicated stone trap located between the feeder and rotors. There’s no stopping, no hesitation, no interruption of the harvesting process. This non-stop harvesting system increases capacity by up to 15% when operating on the stoniest ground. The Dynamic Feed Roll™ system features serrated plates so that it is gentle on the crop to deliver higher-quality, more profitable grain and straw. Simply empty the stone trap module during routine maintenance.
ADVANCED STONE PROTECTION SYSTEM
The unique Automatic Stone Protection System (ASP) uses a detection sensor located under the closed lower drum of the feeder. When a stone is detected, the full width, pivoting ejection door automatically opens and the stone is ejected. The ASP system requires minimal operator input ensures an unobstructed flow of the crop from the feeder to the rotors. This maximizes grain and straw quality, increases capacity and, of course, protects internal feeding elements for extended machine life.
INTELLICRUISE FOR INCREASED PRODUCTIVITY
The IntelliCruise™ automatic crop feeding system automatically matches the forward speed to crop load. A sensor on the feeder driveline continually monitors the demand placed on the header, so in areas of lighter crop, forward speed automatically increases to guarantee the combine works at full capacity through areas of differing yield.
MAKING BLOCKAGES A THING OF THE PAST
New Holland’s unique hydraulic reversing system instantly clears any header and feeder blockages. You can “rock” the header and feeder backward and forward to feed material into the combine and effectively unblock the machine for minimum downtime and maximum harvesting uptime.
|Harvest Suite™ Ultra cab|
|Harvest Suite™ Ultra cab glass area ft.²||68|
|LED lighting pack||Optional|
|LED far distance lights||Optional|
|Standard cloth trimmed seat with air-suspension||Standard|
|Deluxe cloth trimmed heated air-suspension seat with Active Ventilation||Optional|
|Leather trimmed heated air-suspension seat with Active Ventilation||Optional|
|IntelliView™ IV monitor with adjustable position||Standard|
|2nd IntelliView™ IV monitor||Optional|
|Automatic climate control and coolbox||Standard|
|Integrated fridge under instructor seat||Standard|
|MP3 Bluetooth radio (hands free phone calls)||Optional|
|Satellite radio (hands free phone calls)||Optional|
|Optimum cab noise level - ISO 5131 (dB(A))||73|
|Automatic Header Control Systems|
|Terrain Tracer™ system / Autofloat™ system||Standard|
|Number of chains||4|
|ASP™ system (Advanced Stone Protection)||-|
|Dynamic feed roll system||Standard|
|Twin Rotor® Technology|
|Twin Pitch rotors||Standard|
|Rotor diameter / length in.||22 / 104|
|Adjustable rotor vanes||Optional|
|Self-levelling cleaning shoe with Opti-Fan™||Standard|
|Opti-Clean™ cleaning system||Standard|
|Enhanced aggressive shake shoe cleaning system||-|
|Total sieve area under wind control in.²||10,075|
|Graintank and Unloading|
|Manual folding extensions, standard/optional bushels||410 / -|
|Remote folding covers capacity bushels||410|
|Unloading speed bu/sec||4|
|Folding unloading tube||Optional|
|Pivoting unloading tube spout||Optional|
|Integrated straw chopper||Standard|
|Remote chop / drop selection||Optional|
|Opti-Spread™ residue management||Optional|
|Engine* Compliant with Tier 4 Emissions Regulations|
|Engine* Compliant with Tier 4 Emissions Regulations||FPT Cursor 16|
|ECOBlue™ Hi-eSCR system (Selective Catalytic Reduction)||Standard|
|Gross engine power @ 2100 rpm (CV) HP||598|
|Maximum engine power @ 2000 rpm (CV) HP||653|
|Diesel capacity / DEF capacity gal.||340 / 42|
|Road transport speed 20 mph / 25 mph||Standard / Optional|
|Factory installed SmartTrax™ system||-|
|New Holland Precision Land Management Systems|
|IntelliSteer™ ready automatic guidance system||Standard|
|Weight - Standard version less header lbs.||45,898|
|Dimensions with traction wheels**||900 / 75 R32|
|Wheelbase ft. (m)||12' 4" (3.76)|
|Maximum height - transport ft. (m)||13' (3.96)|
|Maximum width ft. (m)||13' (3.96)|
|Maximum width - transport ft. (m)||10' 10" (3.3)|
