Browse EquipmentHarlo HP5000
Features
Tightest Turn Radius in Industry
Industry's Fastest Lift Speeds

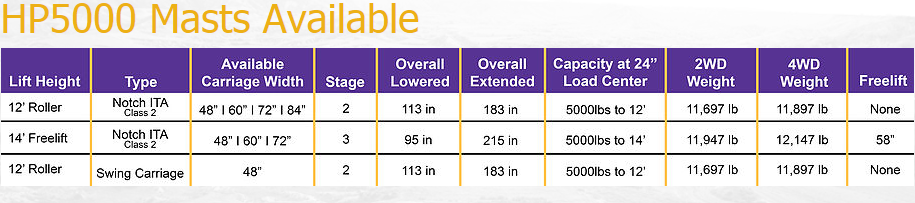

8 Mast Configurations
Bin Clamp Option Available
Easy Ride Accumulator Standard
HP5000 with Cummins Engine
- Cummins 3.8L turbo charged Diesel
- Easy Operator Access to Engine
- Excellent Visibility
- 25mph max speed
- 110hp @ 2500rpm
- Torque: 295ft-lbs @ 1300rpm
- Lifting Capacity up to 5000lbs
- Lifting Height up tp 14'
HP5000 with John Deere Engine
- John Deere 4.5L turbo charged Diesel
- Easy Operator Access to Engine
- Excellent Visibility
- 24mph max speed
- 74hp @ 2400rpm
- Torque: 224ft-lbs @ 1600rpm
- Lifting Capacity up to 5000lbs
- Lifting Height up to 14'
Specifications
| Specifications | HP5000 with Cummins Engine | HP5000 with John Deere Engine |
| Engine | ||
| Emission Rating | Tier 4 Final | Tier 4 Final |
| Gross Power - hp (kW) | 74 | 74 |
| Rated Speed - rpm | 2500 | 2500 |
| No. of Cylinders | 4 | 4 |
| Displacement - Cu in | 229 | 275 |
| Drive Train | ||
| Transmission | Synchromesh | Synchromesh |
| Travel Speed | 24 mph | 25 mph |
| No. of Speeds FWD | 4 | 4 |
| No. of Speeds REV | 4 | 4 |
| Front Tire Size (4WD/2WD) | 16.9 - 24 | 16.9 - 24 |
| Rear Tire Size (2WD) | 11L - 16 | 11L - 16 |
| Rear Tire Size (4WD) | 12 - 16.5 | 12 - 16.5 |
| Hydraulic System | ||
| Main Pump Type | Pressure Compensated | Pressure Compensated |
| Pump Flow gallons/min | 35gpm @2400 | 35gpm @2400 |
| Performance | ||
| Load Center - in (mm) | 24 (610) | 24 (610) |
| Mast Tilt Backward | 13* | 13* |
| Mast Tilt Forward | 13* | 13* |
| Side Shift | 6 in |
