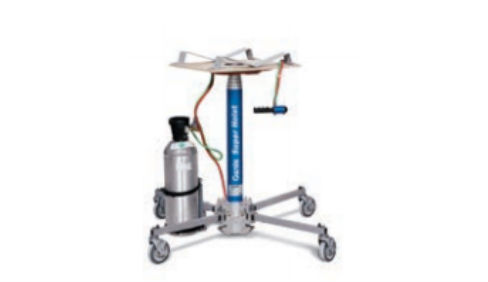

Genie GH™-5.6

Double tap to zoom



Features

Measurements

GH-5.6
• 18 ft 4.5 in (5.60 m) lifting height
• 250 lbs (113 kg) load capacity

Productivity

• Portable and compact design
• Up and down dump valve can be easily  activated by patented control handle
• Quick setup requires no tools
• The one-piece platform attaches  to cylinder with a twist of the wrist
• Legs fold up and lock for easy storage
• Caster brakes
• Auto-lubricating oil reservoir on top of each piston inside the cylinder
• Easy to service
• One-piece platform

Power

• Powered by CO2 or compressed air
• One size fits all CO2 bottle  mounting bracket

Productivity

• Platform cradle package

Power

• 20 lbs (9 kg) CO2 tank

Specifications

Max Lifting Height 18 ft 4.5 in
Capacity 250 lb
Stowed Height 4 ft 6 in
Machine Weight 82 lb
