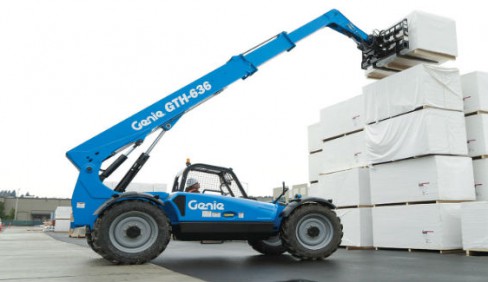

Genie GTH™-636

Double tap to zoom



Features

Measurements

• 6,000 lb (2,722 kg) maximum lift capacity
• 36 ft (10.97 m) maximum lift height
• 21 ft 11 in (6.68 m) maximum reach

Productivity

• Full time 4WD
• 4WS
• Operator selectable front, crab,
coordinated steering modes
• 3-speed forward and reverse
powershift transmission
• Proportional frame leveling 10° each side
• Power assisted steering
• Inboard wet disc service brakes
• Wet disc spring applied parking brake
• 13 x 28 in 12-ply air filled
rough terrain tires
• Front axle differential lock
• High efficiency/variable displacement
hydraulic pump
• ROPS/FOPS canopy
• Single, multi-function,
proportional joystick
• Machine level indicator
• Full gauge cluster with engine diagnostics
• Right-side screen standard on open cab
• Genie manual Quick-Attach™ system
• Retractable 3 in (7.6 cm) seatbelt
• 48 in carriage and pallet forks
• Boom angle indicator
• 10 micron hydraulic return filter
• 1,000 cold cranking amps at 0° F (-18° C)
• Reverse motion alarm
• Adjustable suspension seat
• Auxiliary hydraulic circuit (15 GPM)
• Lifting shackle at boom tip
• Fenders (set of 4)
• Telematics Ready
• Rigging tray

Productivity Options

• Fully enclosed cab (includes full glass,
defroster, wiper, right-side sliding window,
split door, washer)
• Fully enclosed cab with air conditioning
• Dual joystick controls
• Flashing beacon
• Work lights (High output LED cab, boom
and rear)
• Road lights (High output LED 2 front
mounted, 1 backup, 2 rear stop/turn/tail)
• Fire extinguisher
• Front and top glass
• Rear proximity alarm

Engine Options

• Deutz TD 2.9 L4 turbo charged diesel,
Tier 4f 74 hp (55.2 kW)*
• Electric block heater

Tire Options

• 13 x 28 in 12-ply foam-filled
rough terrain tires
• 13 x 24 in solid rough terrain tires

Attachment Options

• Carriages
- 60 in (1.52 m) carriage
- 72 in (1.83 m) carriage
- 48 in (1.22 m) rotating carriage
(10° from center left and right)
- 60 in (1.52 m) rotating carriage
(10° from center left and right)
- 72 in (1.83 m) swing carriage
(45° from center left and right)
• Forks
- 60 in (1.52 m) pallet forks (set of two)
2 x 4 x 60 in (.05 x .10 x 1.52 m)
- 72 in (1.83 m) pallet forks (set of two)
2 x 4 x 72 in (.05 x .10 x 1.83 m)
- 60 in (1.52 m) lumber forks (set of two)
1.75 x 7 x 60 in (.04 x .18 x 1.52 m)
- 48 in (1.22 m) cubing tines (set of four)
2 x 4 x 48 in (.05 x .10 x 1.22 m)

Specifications

Max Lift Capacity 6,000 lb | 2,722 kg
Max Lift Height 36 ft | 10.98 m
Max Forward Reach 21 ft 11 in | 6.68 m
Capacity at Max Height 5,000 lb | 2,268 kg
Capacity at Max Reach 1,500 lb | 680 kg
