Browse EquipmentGenie GH™ -5.6
Material Lifts GH™ -5.6
Overview:

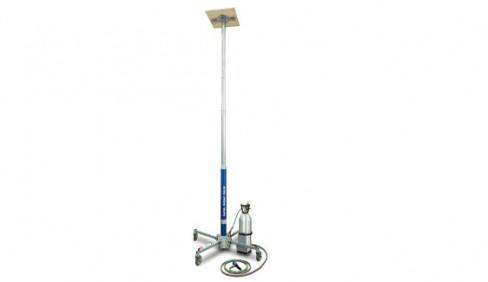

Powered by CO2 or compressed air, the Genie® Super Hoist™ GH™ 5.6 material lifts are lightweight and portable. They can be set up in seconds with no tools. And, they can easily transported by one person.
Features
Measurements
GH-5.6
• 18 ft 4.5 in (5.60 m) lifting height
• 250 lbs (113 kg) load capacity
Productivity
• Portable and compact design
• Up and down dump valve can be easily
activated by patented control handle
• Quick setup requires no tools
• The one-piece platform attaches
to cylinder with a twist of the wrist
• Legs fold up and lock for easy storage
• Caster brakes
• Auto-lubricating oil reservoir on top of
each piston inside the cylinder
• Easy to service
• One-piece platform
Power
• Powered by CO2 or compressed air
• One size fits all CO2 bottle
mounting bracket
Productivity
• Platfrom cradle package
Power
• 20 lbs (9kg) CO2 tank
Specifications
| Max Lifting Height | 18 ft 4.5 in |
| Capacity | 250 lb |
| Stowed Height | 4 ft 6 in |
| Machine Weight | 82 lb |
