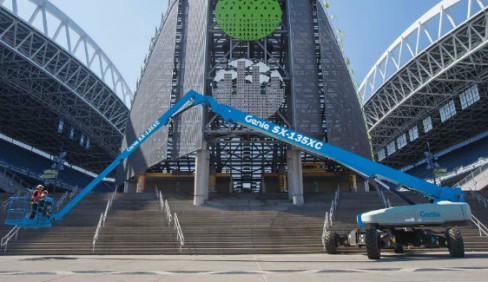

Browse EquipmentGenie SX-135 XC
Features
- Industry-leading 90 ft (27.43 m) of maximum outreach
- Increased range of motion with 18 - 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend™ and 130° of jib articulation
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 19 ft 8 in (6.00 m) of reach below grade
** Maximum outreach zone / maximum capacity zone.
Specifications
| Models | SX-135 XC |
| Measurements | US |
| Working height max.(1) | 141 ft |
| Platform height max. | 135 ft |
| Horizontal reach max. | 90 ft |
| Below ground reach | 19 ft 8 in |
| A Platform length | 3 ft |
| B Platform width | 8 ft |
| C Height - stowed (tires) | 10ft |
| D Length - stowed (tires) | 64 ft 10 in |
| Length - storage/transport (jib tucked under) | 43 ft 7 in |
| E Width (axles retracted) | 8 ft 2 in |
| Width (axles extended) | 12 ft 11 in |
| F Wheelbase (axles retracted) | 13 ft 6 in |
| Wheelbase (axles extended) | 13 ft 6 in |
| G Ground clearance - center (tires) | 15 in |
| H Height under counterweight | 4 ft 1 in |
| Productivity | |
| Lift capacity max. - unrestricted | 660 lb |
| Lift capacity max. - restricted | 1,000 lb |
| Number of Platform Occupants (restricted/unrestricted) | 3/2 |
| Platform rotation | 160° |
| Jib length | 18/30 ft |
| Vertical jib rotation (up/down) | 130° |
| Turntable rotation | 360° |
| Turntable tailswing (axles retracted) | 3 ft 9 in |
| Turntable tailswing (axles extended) | 5 ft 7 in |
| Drive speed - stowed (tires) | 2.7 mph |
| Drive speed - raised (tires) | 0.4 mph |
| Gradeability - stowed(2) | 35 % |
| Tilt sensor activation (front to back/side to side) | 4.5° / 4.5° |
| Turning radius - inside/outside (axle retracted) | 26 ft 4 in/32 ft 8 in |
| Turning radius - inside/outside (axle extended) | 9 ft 6 in/20 ft 3 in |
| Tires | 445D50/710 |
| Power | |
| Power | Diesel |
| Hydraulic tank capacity | 60 gal |
| Fuel tank capacity | 40 gal |
| Weight(3) and Floor Loading(4) | |
| Weight (tires) | 47,500 lb |
| Tire contact pressure | 130 psi |
| Occupied floor pressure, axles retracted/ extended (tires) | 351 psf/ 222 psf |
| Sound and Vibration Levels | |
| Sound Pressure level (ground workstation) | 91 dBA |
| Sound Pressure level (platform workstation) | 75 dBA |
| Vibrations | < 2.5 m/s2 |
