Measurements

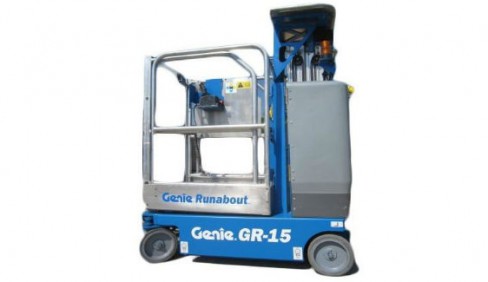

GR-15
• 20 ft 8 in (6.52 m) working height
• 14 ft 8 in (4.52 m) platform height
• Up to 500 lbs (227 kg) lift capacity

Productivity

• Work station tray (GR™-12, GR™-15 only)
• Standard platform with sliding midrail
• Auxiliary platform lowering
• Patented rigid mast system
• Compact base 29.5 x 53 in
(.75 m x 1.35 m) (GR™-12, GR™-15 only)
• Ground clearance 2.5 inches (stowed)
• SmartLink™ control system
• Battery charge indicator
• On-board diagnostic system
• AC power to platform
• Descent and tilt alarm
• Zero inside turning radius
• Dual wheel brakes
• Hydraulic brake release
• Pothole protection
• Hinged rear ABS covers for easy access
to all major electrical and hydraulic
components
• Tie down attachment points
• Overhead crane attachment point
• Large forklift pockets access
• Non-marking solid tires
• Telematics ready
• Motion alarm

Power

• Automatic 19 amp battery charger

Productivity

• 20 in (.51 m) extension platform with
sliding midrail
• 20 in (.51 m) extension platform
with gate
• Narrow AWP platform with gate
• Dual flashing beacons
• Fluorescent tube caddy
• Automotive horn
• EE Certification*
• Biodegradable hydraulic oil
• Drive cutout while charging
• 10 ft retractable charging cord*

Power

• 24V (four 6V 225 Ah batteries)
• 800 watt, 24 V inverter (120-230V
AC/50-60 Hz)
• AGM maintenance-free batteries

Tire

• Non-marking solid tires
