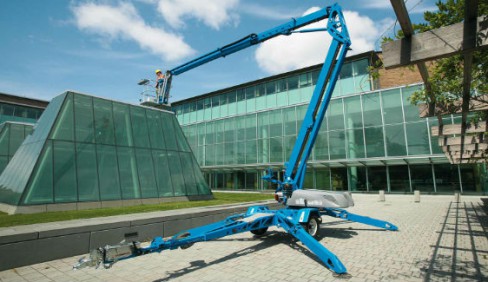

Genie TZ™-50

Double tap to zoom



Features

Measurements

• 55 ft 6 in (17.09 m) working height
• 29 ft 2 in (8.89 m) horizontal reach
• Up to 500 lbs (227 kg) lift capacity

Productivity

• Industry leading working envelope
• Extension boom
• Self-leveling platform
• 4 ft jib with 135° working range
• AC wiring to platform
• Hydraulic outriggers
• Automatic 11° leveling system
• Outrigger interlocks
• Mechanical parking brake
• Hydraulic surge brakes
• Adjustable hitch with coupler
lever lock
• Dual jockey wheels
• 359° non-continuous turntable rotation
• Easy to access batteries
• Hour meter
• Tilt alarm / sensor
• Illuminated outrigger indicators
• Highway safety chains with snap hook
• LED brake lights (ANSI, CSA)

Power

• 24V DC power source
(four 6V 225 Ah batteries)

Platform Options

• Aluminum 26.8 x 44 in (.68 x 1.12 m)
• 160° hydraulic platform rotation

Power Options

• 24V DC power source
• Hybrid Honda 5.5 Hp (4.1 Kw)
45 amp charging system

Drive

• Drive and set option (ANSI, CSA, AUS)
• Drive only (CE)

Coupler Options

Adjustable hitch
- 2 in (5.08 cm) ball coupler
- 2 5/16 in (5.87 cm) ball coupler
- 2 1/2 in (6.53 cm) I.D. pintle ring coupler
- Clevis coupler

Tire Options

• ST 225/75 R15 tires (ANSI, CSA)
• 215 R14C tires (CE)

Specifications

Max Platform Height 49 ft 6 in | 15.09 m
Horizontal Reach 29 ft 2 in | 8.89 m
Platform Capacity 500 lbs | 227 kg
Up and Over Clearance 22 ft | 6.7 m
Weight 4,400 lb | 1,996 kg
