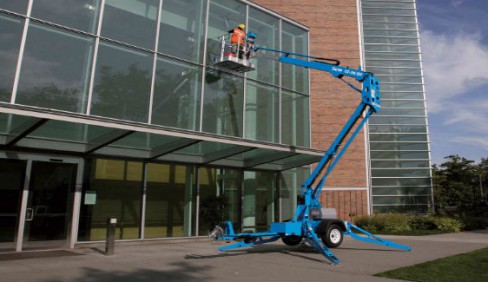

Genie TZ™-34/20

Double tap to zoom



Features

Measurements

• 40 ft (12.36 m) working height
• 18 ft 4 in (5.59 m) horizontal reach
• Up to 500 lbs (227 kg) lift capacity

Productivity

• Industry leading working envelope
• Extension boom
• Self-leveling platform
• Variable speed control system
• AC wiring to platform
• Hydraulic outriggers
• Automatic 11° leveling system
• Outrigger interlocks
• Mechanical parking brake
• Hydraulic surge brakes
• 2 in (5.08 cm) coupler lever lock
• Hitch pull bar
• Adjustable hitch with coupler lever lock
• Single jockey wheels
• 359° non-continuous turntable rotation
• Easy to access batteries
• Hour meter
• Tilt alarm / sensor
• Forklift pockets
• Illuminated outrigger indicators
• Highway safety chains with snap hook
• LED brake lights (ANSI, CSA)

Power

• 24V DC power source
(four 6V 225 Ah batteries)

Platform Options

• Aluminum 26.8 x 44 in (.68 x 1.12 m)
• 90° mechanical platform rotation

Power

• 24V DC power source

Coupler Options

• Adjustable hitch
- 2 in (5.08 cm) ball coupler
- 2 5/16 in (5.87 cm) ball coupler
- 2 1/2 in (6.53 cm) I.D. pintle ring coupler
- Clevis coupler

Tire Options

• ST 205/75 R15 tires (ANSI, CSA)
• 185 R14C tires (CE)
• Dual 10 in (25.4 cm) air filled tires

Specifications

Max Platform Height 34 ft | 10.36 m
Horizontal Reach 18 ft 4 in | 5.59 m
Platform Capacity 500 lbs | 227 kg
Up and Over Clearance 16 ft 1 in | 4.90 m
Weight 3,155 lb | 1,431 kg
