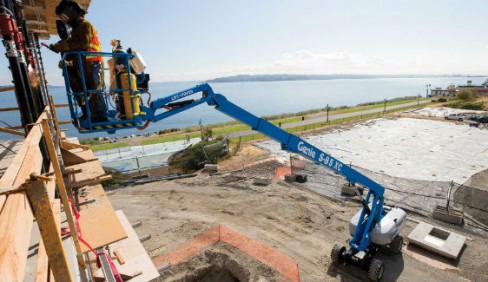

Genie S-80 XC and S-85 XC

Features
- Maximum capacity with a robust jib design to handle increased loads
- Load sense technology for accurate load weighing and zero-load field calibration
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- Onboard diagnostics maximizes serviceability
- Option to add the new Genie Lift Power™ generator system
Specifications
Max Working Height | S-80 XC: 86 ft / S-85 XC: 91 ft | S-80 XC: 26.38 m / S-85 XC: 27.91 m |
Max Horizontal Reach | S-80 XC: 68 ft 6 in / S-85 XC: 74 ft 6 in | S-80 XC: 20.88 m / S-85 XC: 22.71 m |
Below Ground Reach | S-80 XC: 5 ft 6 in / S-85 XC: 8 ft 8 in | S-80 XC: 1.68m / S-85 XC: 2.64 m |
Platform Capacity | 660 lb Unrestricted, 1000 lb Restricted | 300 kg Unrestricted, 454 kg Restricted |
Machine Width and Length | S-80 XC: 8ft 2 in, 37 ft 7 in / S-85 XC: 8 ft 2 in, 40 ft 7 in | S-80 XC: 2.49 m, 11.3 m / S-85 XC: 2.49 m, 12.37 m |
