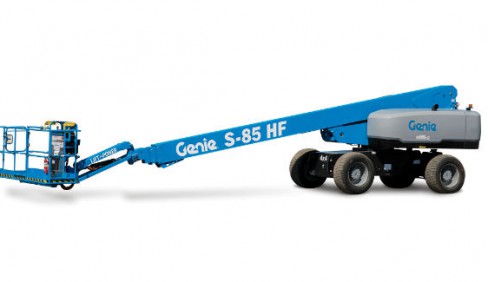

Genie S®-80 HF and S®-85 HF

Double tap to zoom



Features

Measurements

S-80 HF
• 86 ft (26.38 m) working height
• 68 ft 6 in (20.88 m) horizontal reach
• 600 lbs (272 kg) unrestricted and
1,000 lbs (454 kg) restricted lift capacity
S-85 HF
• 91 ft (27.74 m) working height
• 72 ft 6 in (22.10 m) horizontal reach
• 600 lbs (272 kg) unrestricted and
1,000 lbs (454 kg) restricted lift capacity

Productivity

• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction four wheel drive
• Two speed wheel motors
• Telematics ready connector
• Platform Load sense system
• Entry Toeboard
• Hydraulic oil cooler
• Alarm package
• Work tray
• Lift Guard™ Contact Alarm

Power

• 12V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown

Platform Options

• Steel 6 ft (1.83 m) dual entry with side
swing gate
• Steel 8 ft (2.44 m) tri-entry with side
swing gate (standard)

Jib Options

• Non-jib (S-80 HF only)
• 5 ft (1.52 m) jib boom (S-85 HF only)

Engine Options

• 74 hp (55.18 kW ) Deutz
turbo diesel T4f* (standard)
• 58 hp (43.25 kW) Perkins
turbo diesel T4f*
• 70 hp (52.2 kW) GM gas/LPG

Axle

• Active oscillation

Specifications

Max Platform Height S-80 HF: 80 ft / S-85 HF: 85 ft | S-80 HF: 24.38 m / S-85 HF: 25.91 m
Max Horizontal Reach S-80 HF: 68 ft 6 in / S-85 HF: 72 ft 6 in | S-80 HF: 20.88 m / S-85 HF: 22.10 m
Below Ground Reach S-80 HF: 5 ft 6 in / S-85 HF: 8 ft 8 in | S-80 HF: 1.68m / S-85 HF: 2.64 m
Platform Capacity 600 lb Unrestricted, 1000 lb Restricted | 272 kg Unrestricted, 454 kg Restricted
Machine Width and Length S-80 HF: 8ft 6 in, 37 ft 1 in / S-85 HF: 8 ft 6 in, 40 ft 7 in | S-80 HF: 2.59 m, 11.23 m / S-85 HF: 2.59 m, 12.37 m
