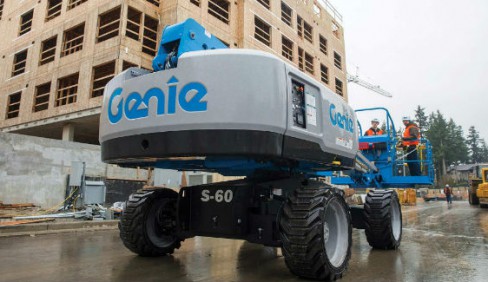

Genie S®-60X & S®-65

Double tap to zoom



Features

Measurements

S-60 X
• 64 ft 4 in (19.79 m) working height
• 50 ft 10 in (15.48 m) horizontal reach
• 500 lbs (227 kg) unrestricted and 1000 lbs (454 kg) restricted lift capacity

S-65
• 71 ft (21.81 m) working height
• 56 ft 2 in (17.10 m) horizontal reach
• 500 lbs (227 kg) lift capacity
Productivity
• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Fuel select switch on platform and ground control panels (Gas/LPG models)
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
• Telematics ready connector
• Entry Toeboard
• Lift Guard™ Contact Alarm
Power
• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• Swing out engine tray
• Intake air heater (Deutz engine)
Measurements
S-60 X
• 64 ft 4 in (19.79 m) working height
• 50 ft 10 in (15.48 m) horizontal reach
• 500 lbs (227 kg) unrestricted and 1000 lbs (454 kg) restricted lift capacity
S-60 XC
• 64 ft 4 in (19.79 m) working height
• 50 ft 10 in (15.48 m) horizontal reach
• 750 lbs (340 kg) unrestricted and 1250 lbs (680 kg) restricted lifting capacity
S-65
• 71 ft (21.81 m) working height
• 56 ft 2 in (17.10 m) horizontal reach
• 500 lbs (227 kg) lift capacity

Productivity

• Self-leveling platform
• 160° hydraulic platform rotation
• Proportional joystick controls
• Fuel select switch on platform and ground control panels (Gas/LPG models)
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• 360° continuous turntable rotation
• Positive traction drive
• Two speed wheel motors
• Telematics ready connector
• Entry Toeboard
• Lift Guard™ Contact Alarm

Power

• 12 V DC auxiliary power
• Anti-restart engine protection
• Auto engine fault shutdown
• Swing out engine tray
• Intake air heater (Deutz engine)

Platform Options

• Steel 8 ft (2.44 m) tri entry with side
swing gate (standard)
• Steel 6 ft (1.83 m) dual entry with side
swing gate
• Steel 4 ft (1.22 m)

Jib Options

• Non-jib (S-60 only)
• 5 ft (1.52 m) jib boom (S-65 only)

Engine Options

• 49 hp (36.54 kW) Deutz diesel T4f*
(standard)
• 49 hp (36.54 kW) Perkins diesel T4f*
• 74 hp (55.18 kW) Deutz turbo diesel T4f*
• 60hp (44.74 kW) Ford gas/LPG

Drive Options

• 2WD
• 4WD (standard)

Axle Options

• Active oscillation (4WD)
• Non-oscillating (2WD)

Tire Options

• Rough terrain air-filled (standard)
• Rough terrain foam-filled
• Rough terrain non-marking
(air or foam-filled)
• High flotation air-filled
• Sealant treated air-filled
• Trax (track system)

Specifications

Max Platform Height 58 ft 4 in | 19.79 m
Max Horizontal Reach 50 ft 10 in | 15.48 m
Below Ground Reach 5 ft 7 in | 1.70 m
Platform Capacity 500 lb/1,000 lb | 227 kg/ 454 kg
Machine Width and Length S-60 X: 8 ft 2 in, 27 ft 9 in / S-65: 8 ft 2 in, 30 ft 11 in | S-60 X: 2.49 m, 2.72 m / S-65: 2.49 m, 9.42 m
