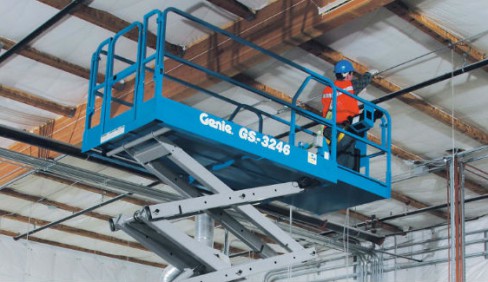

Genie GS™-3246

Double tap to zoom



Features

Measurements

GS-3246
• 38 ft (11.75 m) working height
• Up to 700 lbs (318 kg) lift capacity

Productivity

• 89 x 45.3 in (2.26 x 1.15 m)
steel platform
• 36 in (.91 m) extension deck
• Folding rails with full height swing gate
• Drive at full height
• Dual front wheel drive
• Universal 20 amp smart charger
• Rear recessed charger receptacle
• SmartLink™ - proportional lift and drive
• Platform control with battery charge
indicator and diagnostic display
• On-board diagnostic system
• AC power to platform
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform
and ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Solid non-marking tires
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Hour meter
• Motion alarm

Power

• 24 V DC (four 6 V 225 Ah batteries)

Productivity Options

• Air line to platform
• Dual flashing LED beacons
• Automotive horn*
• Biodegradable hydraulic fluid

Power Options

• Power inverter (120 V/60 Hz)*
• EE rating
• AGM maintenance-free batteries

Specifications

Max Platform Height 32 ft | 9.75 m
Capacity 700 lb | 318 kg
Machine Width 3 ft 10 in | 1.16 m
Machine Length 8 ft | 2.44 m
Weight 5,211 lb | 2,364 kg
