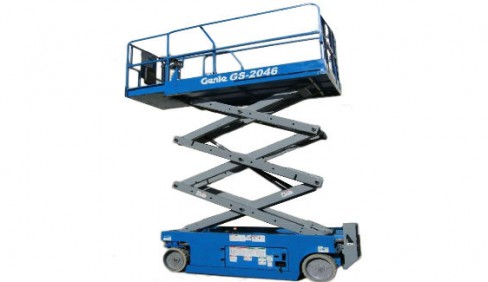

Genie GS™-2046

Double tap to zoom



Features

Measurements

GS-2046
• 26 ft (8.10 m) working height
• Up to 1,200 lbs (545 kg) lift capacity

Productivity

• 89 x 45.3 in (2.26 x 1.15 m)
steel platform
• 36 in (.91 m) extension deck
• Folding rails with full height swing gate
• Drive at full height
• Dual front wheel drive
• Universal 20 amp smart charger
• Rear recessed charger receptacle
• SmartLink™ - proportional lift and drive
• Platform control with battery charge
indicator and diagnostic display
• On-board diagnostic system
• AC power to platform
• Lanyard attachment points
• Manual platform lowering valve
• Emergency stop at both platform
and ground controls
• Rear wheel multiple disc brakes
• Front wheel hydraulic dynamic braking
• Manual hydraulic brake release
• Swing-out component trays
• Solid non-marking tires
• Pothole guards
• Tilt level sensor with audible alarm
• Descent alarm
• Electronic horn
• Hour meter
• Motion alarm

Power

• 24 V DC (four 6 V 225 Ah batteries)

Productivity Options

• Air line to platform
• Dual flashing LED beacons
• Automotive horn*
• Biodegradable hydraulic fluid

Power Options

• Power inverter (120 V/60 Hz)*
• EE rating
• AGM maintenance-free batteries

Specifications

Max Platform Height 20 ft | 6.10 m
Capacity 1,200 lb | 544 kg
Machine Width 3 ft 10 in | 1.16 m
Machine Length 8 ft | 2.44 m
Weight 3,977 lb | 1,804 kg
