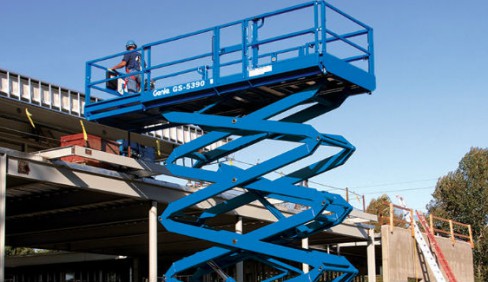

Genie GS™-5390 RT

Double tap to zoom



Features

Measurements

GS-5390
• 59 ft (18.15 m) working height
• Up to 1,500 lbs (680 kg) lift capacity

Productivity

• 156.5 x 72 in (3.98 x 1.83 m)
steel frame platform
• 60 in (1.52 m) extension deck
• Replaceable aluminum diamond
plate deck
• Proportional lift and drive
• Onboard diagnostic system
• AC power to platform
• Two self-closing gates
• 4WD
• Automatic leveling hydraulic outriggers*
• Oscillating axle**
• Positive traction control
• Four-wheel braking
• Slide-out engine tray
• Foam-filled rough terrain tires
• Tilt level sensor with audible alarm
• Descent alarm
• Horn
• Hour meter
• Motion alarm

Power

• 48 hp (36 kW) Deutz D2.9L4 diesel,
Tier 4f

Productivity Options

• Oscillating axle***
• Automatic leveling hydraulic outriggers****
• Dual slide-out platform extension
deck package 5 ft (1.52 m) front
and 4 ft (1.22 m) rear
• Air line to platform
• Foam filled non-marking rough terrain tires
• High flotation air-filled tires
• High flotation foam-filled tires
• Dual flashing LED beacons
• Biodegradable hydraulic oil

Power Options

• 75 hp (56 kW) Ford MSG 425 gas/LPG
• AC, 2000 Watt generator (120 V / 60 Hz),
(includes hydraulic oil cooler)
• Cold weather package
• Hydraulic oil cooler
• Diesel catalytic scrubber muffler
• LPG steel tank only, 33.5 lb capacity

Specifications

Max Platform Height 53 ft | 16.15 m
Capacity 1,500 lb | 680 kg
Machine Width 7 ft 8 in | 2.36 m
Machine Length 16 ft | 4.88 m
Weight 16,567 lb | 7,515 kg
