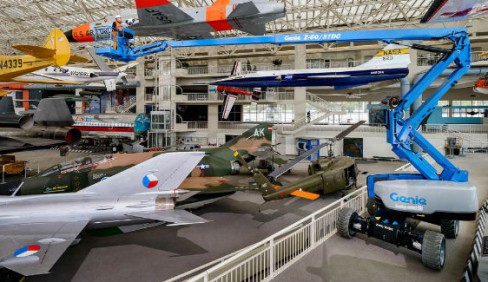

Genie Z®-60/37 DC & FE

Features
Measurements
• 65 ft 7 in (20.16 m) working height
• 36 ft 7 in (11.15 m) horizontal reach
• 24 ft 3 in (7.39 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity
Productivity
• 5 ft (1.52 m) jib boom with 135˚ working range
• Digital hour meter with battery charge indicator and diagnostic readout
• 4Wheel AC electric drive system
• Variable speed high efficiency hydraulic power unit
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent, motion and travel alarm
• 355° non-continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• Telematics ready connector
Power
• 48 V DC battery pack (390Ah FLA standard on DC)
• 48 V DC battery pack (415Ah AGM standard on FE)
• 12 V DC auxiliary power
• 25A temperature compensated smart charge system
• Battery charge indicator
• Low battery voltage interrupt
Platform Options
• Steel 6ft (1.83m) dual entry with side swing gate (standard)
• Steel 8ft (2.44m) tri entry with side swing gate
Jib
• 5 ft (1.52 m) jib boom
Engine Option
• 24.8 HP (18.5 kW) Kubota T4 diesel
Drive Option
• 4WD Electric AC (standard)
Axle Option
• Active oscillation (standard on 4WD)
Tire Options
• Rough terrain foam-filled (standard on FE)
• Rough terrain non-marking foam filled (standard on DC)
Specifications
Max Working Height | 65 ft 7 in | 20.16 m |
Max Horizontal Reach | 36 ft 7 in | 11.15 m |
Max Up and Over Clearance (riser extended) | 24 ft 3 in | 7.39 m |
Below Ground Reach | 8 ft 1 in | 2.46 m |
Platform Capacity | 500 lb | 227 kg |
