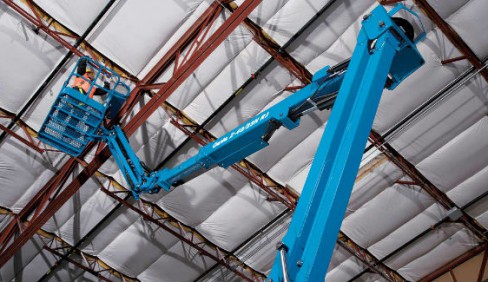

Genie Z®-40/23 N & Z®-40/23 N RJ

Double tap to zoom



Features

Measurements

Z-40/23N & Z-40/23N RJ
• 46 ft 5 in (14.32 m) working height
• 22 ft 8 in (6.91 m) horizontal reach
• 21 ft 3 in (6.48 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity

• 4 ft 11 in (1.50 m) width
• 2 ft 11 in (.87 m) inside turning radius
• 4 ft (1.22 m) jib boom with 128° working range
• AC electric drive system
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent, motion, & travel alarms
• Hydraulic filter condition monitor
• 355° non-continuous turntable rotation
• Traction control
• On board easy to understand diagonostics
• Telematics ready connector

Power

• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• Universal 30A battery smart charger
• Battery charge indicator
• Low battery voltage interrupt

Platform Options

• Steel 4 ft 8 in (1.42 m) (Z40N only)
• Steel 3 ft 10 in (1.17 m)

Jib Options

• 4 ft (1.22 m) jib boom
• 4 ft (1.22 m) horizontal rotating jib boom

Power

• 48 V DC (eight 6 V 350 Ah batteries)

Drive

• 2WD Electric AC

Tire

• Solid rubber non-marking

Specifications

Max Working Height 40 ft 5 in | 12.32 m
Max Horizontal Reach 22 ft 8 in | 6.91 m
Max Up and Over Clearance (riser extended) 21 ft 3 in | 6.48 m
Platform Capacity 500 lb | 227 kg
