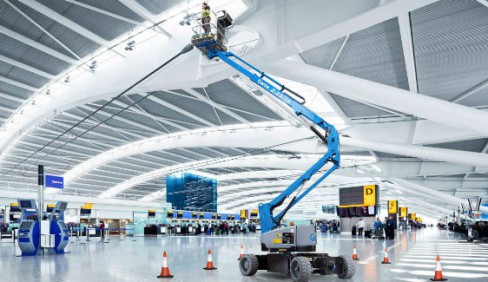

Browse EquipmentGenie Z®-33/18
Electric & Bi-Energy Lifts Z®-33/18
Overview:
•Driveable at full height for added productivity in high-rise spaces
•360° turntable rotation for precise positioning at height
•Genie Fast Mast™ boom system allows operators to descend and retrieve materials and to quickly return to work at height
• Proportional controls for lift and drive functions
Features
Measurements
• 38 ft 10 in (12 m) working height
• 18 ft 3 in (5.57 m) horizontal reach
• 14 ft 1 in (4.28 m) up and over clearance
• Up to 440 lbs (200 kg) lift capacity with up to two occupants
Productivity
• Alarm package (flashing beacon and
travel alarm)
• 4 ft 11 in (1.50 m) width
• 6 ft 3 in (1.9 m) inside turning radius
• Self-leveling platform
• Fast Mast™ System
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• Horn
• Hour meter
• Tilt alarm
• Descent & travel alarms
• 400° non-continuous turntable rotation
• AC electric drive system
• Traction control
• On board easy to understand diagnostics
• AC power cord to platform
• Entry toe board
Power
• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• Universal 30A battery smart charger
• Battery charge indicator
• Low battery voltage interrupt
Platform
• Aluminum 3 ft 10 in (1.17 m)
Power
• 48 V DC (eight 6 V 350 Ah batteries)
Drive
• 2 x 4 Electric AC
Tires
• Solid rubber non-marking
Specifications
| Max Working Height | 38 ft 10 in | 12 m |
| Max Horizontal Reach | 18 ft 3 in | 5.57 m |
| Max Up and Over Clearance (riser extended) | 14 ft 1 in | 4.28 m |
| Platform Capacity | 440 lb | 200 kg |
