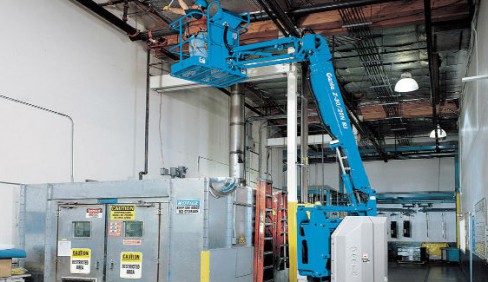

Browse EquipmentGenie Z®-30/20 N
Electric & Bi-Energy Lifts Z®-30/20 N
Overview:
•Works in tight spaces with zero tailswing and front arm swing in stowed and raised positions
•Compact chassis for narrow aisle access
•4 ft (1.22 m) jib boom has 139° range of motion allowing precise positioning above or below
•35% gradeability drive performance and 3.3 mph travel speed
Features
Measurements Z-30/20N
• 36 ft (11.14 m) working height
• 21 ft 5 in (6.53 m) horizontal reach
• 12 ft 8 in (3.86 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity
Productivity
• 4 ft (1.22 m) jib boom with 139° working range
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent & travel alarms
• Zero tailswing and front arm swing
• 355° non-continuous turntable rotation
• Telematics ready connector
Power
• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• Universal 30A battery smart charger
Platform
• Steel 3 ft 10 in (1.17 m) with sliding
mid-rail
Jib Options
• 4 ft (1.22 m) jib boom
• 4 ft (1.22 m) horizontal rotating
jib boom
Power
• 48 V DC power source
Drive
• 2WD
Tire
• Solid rubber non-marking
Specifications
| Max Working Height | 36 ft | 11.14 m |
| Max Horizontal Reach | 21 ft 5 in | 6.53 m |
| Max Up and Over Clearance (riser extended) | 12 ft 8 in | 3.86 m |
| Platform Capacity | 500 lb | 227 kg |
