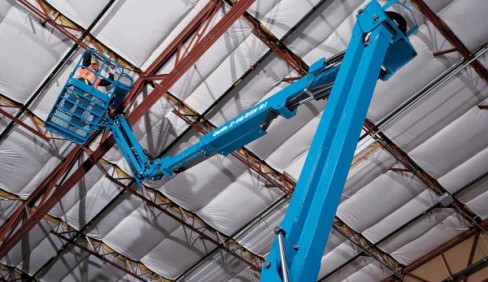

Browse EquipmentGenie Z-40/23 N RJ
Features
- Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined jobsites
- Compact chassis for narrow aisle access
- 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
- AC drive system for enhanced driving performance and simplified maintenance
- 1.22 m (4 ft) articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility
- 180° hydraulic platform rotation and self-leveling platform for easy operation
Specifications
| Models | Z-40/23N | Z-40/23N RJ |
| Measurements | US | US |
| Working height max.(1) | 46 ft 5 in | 46 ft 5 in |
| Platform height max. | 40 ft 5 in | 40 ft 5 in |
| Horizontal reach max. | 22 ft 8 in | 22 ft 8 in |
| Up and over clearance max. | 21 ft 3 in | 21 ft 3 in |
| A Platform length | 2 ft 6 in | 2 ft 6 in |
| B Platform width | 4 ft 8 in | 3 ft 10 in |
| C Height - stowed (tires) | 6 ft 6 in | 6 ft 6 in |
| D Length - stowed (tires) | 21 ft 5 in | 21 ft 5 in |
| E Width | 4 ft 11 in | 4 ft 11 in |
| F Wheelbase | 6 ft 5 in | 6 ft 5 in |
| G Ground clearance - center | 9.5 in | 9.5 in |
| Productivity | ||
| Lift capacity max. - unrestricted | 500 lb | 500 lb |
| Platform rotation | 180° | 180° |
| Jib length | 4 ft | 4 ft |
| Vertical jib rotation | 128° | 128° |
| Horizontal jib rotation | — | 180° |
| Turntable rotation | 355° | 355° |
| Turntable tailswing | 5 in | 5 in |
| Drive speed - stowed(2) | 4.5 mph | 4.5 mph |
| Drive speed - raised | 0.68 mph | 0.68 mph |
| Gradeability - stowed(2) | 0.3 | 0.3 |
| Tilt sensor activation (front to back/side to side) | 2.5°- 4.5° / 4.5° | 2.5°- 4.5° / 4.5° |
| Turning radius - inside/outside | 2ft 11in/10ft 6in | 2ft 11in/10ft 6in |
| Tires (solid, non-marking) | 22 × 7 × 17.75 in | 22 × 7 × 17.75 in |
| Power | ||
| Power | 48V DC (8 × 6V 350Ah) | 48V DC (8 × 6V 350Ah) |
| Drive system | 48 V 3-Phase AC | 48 V 3-Phase AC |
| Auxiliary power unit | 24 V DC | 24 V DC |
| Hydraulic tank capacity | 8 gal | 8 gal |
| Weight(3) and Floor Loading(4) | ||
| Weight (tires) | 15,230 lb | 15,300 lb |
| Tire contact pressure | 200 psi | 200 psi |
| Occupied floor pressure (tires) | 372 psf | 372 psf |
| Sound and Vibration Levels | ||
| Sound Pressure level (ground workstation) | < 70 dBA | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA | < 70 dBA |
| Vibrations | 8 ft 2 in/s² | 8 ft 2 in/s² |
