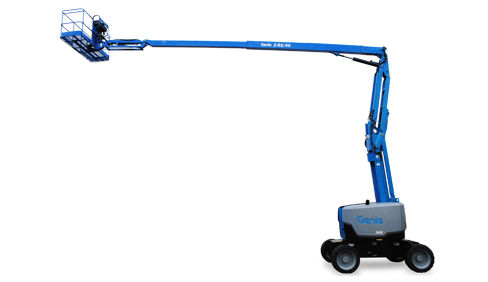

Genie Z®-62/40

Double tap to zoom



Features

Measurements

• 67 ft 11 in (12.87 m) working height
• 40 ft 5 in (12.42 m) horizontal reach
• 26 ft 8 in (8.13 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity

Productivity

• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• Zero tailswing
• 360° continuous turntable rotation
• Locking turntable covers
• Positive traction drive
• 2 speed wheel motors
• Hydraulic oil cooler
• Telematics ready connector

Power

• 12V DC auxiliary power
• Engine protection package
• Anti-restart engine protection
• Auto engine fault shutdown
• Intake air heater (Deutz engine)

Platform Options

• Steel 8 ft (2.44 m) (standard)
• Steel 6 ft (1.83 m)
• Steel 8 ft (2.44 m) tri-entry

Jib

• 5 ft (1.52 m) jib boom

Engine Options

• 49 hp (35.79 kW) Deutz diesel T4f* (standard)
• 48 hp (35.79 kW) Perkins diesel T4f*
• 60 hp (56 kW) Ford gas/LPG

Drive Options

• 2WD
• 4WD
• 4WS

Axle Options

• Active oscillation (standard on 4WD)
• Non-oscillating (2WD only)

Tire Options

• Rough terrain air-filled (standard)
• Rough terrain foam-filled
• High flotation air-filled
• Sealant treated air-filled
• Rough terrain non-marking (air or foam-filled)

Specifications

Max Working Height 67 ft 11 in | 20.87 m
Max Horizontal Reach 40 ft 5 in | 12.42 m
Max Up and Over Clearance (riser extended) 25 ft 7 in | 7.8 m
Platform Capacity 500 lb | 227 kg
