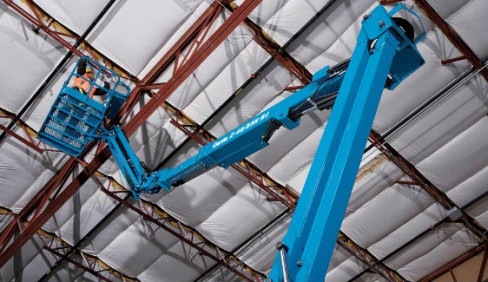

Genie Z®-40/23 N & Z®-40/23 N RJ

Features
Measurements
Z-40/23N & Z-40/23N RJ
• 46 ft 5 in (14.32 m) working height
• 22 ft 8 in (6.91 m) horizontal reach
• 21 ft 3 in (6.48 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity
Productivity
• 4 ft 11 in (1.50 m) width
• 2 ft 11 in (.87 m) inside turning radius
• 4 ft (1.22 m) jib boom with 128° working range
• AC electric drive system
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• AC power cord to platform
• Horn
• Hour meter
• Tilt alarm
• Descent, motion, & travel alarms
• Hydraulic filter condition monitor
• 355° non-continuous turntable rotation
• Traction control
• On board easy to understand diagonostics
• Telematics ready connector
Power
• 48 V DC deep cycle battery pack
• 24 V DC auxiliary power
• Universal 30A battery smart charger
• Battery charge indicator
• Low battery voltage interrupt
Platform Options
• Steel 4 ft 8 in (1.42 m) (Z40N only)
• Steel 3 ft 10 in (1.17 m)
Jib Options
• 4 ft (1.22 m) jib boom
• 4 ft (1.22 m) horizontal rotating jib boom
Power
• 48 V DC (eight 6 V 350 Ah batteries)
Drive
• 2WD Electric AC
Tire
• Solid rubber non-marking
Specifications
Max Working Height | 40 ft 5 in | 12.32 m |
Max Horizontal Reach | 22 ft 8 in | 6.91 m |
Max Up and Over Clearance (riser extended) | 21 ft 3 in | 6.48 m |
Platform Capacity | 500 lb | 227 kg |
