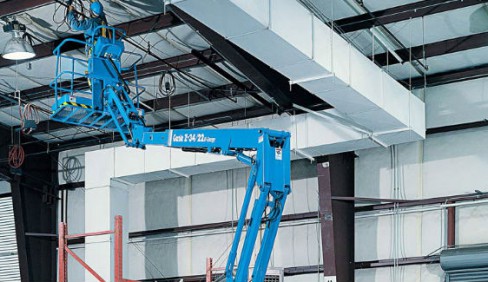

Browse EquipmentGenie Z®-34/22 DC or Bi Energy
Articulated Boom Lifts Z®-34/22 DC or Bi Energy
Overview:
•30% gradeability drive performance and 4.0 mph travel speed
•Motor controller eliminates the need for forward/reverse contactors or speed sensors, reducing complexity and improving reliability of the drive system
•Self-leveling platform features 180° powered horizontal rotation for precise positioning and easy opera... + Read More
Features
Measurements
• 40 ft 6 in (12.52 m) working height
• 22 ft 3 in (6.78 m) horizontal reach
• 15 ft (4.57 m) up and over clearance
• Up to 500 lbs (227 kg) lift capacity
Productivity
• 4 ft (1.22 m) jib boom with 139°
working range
• Self-leveling platform
• Hydraulic platform rotation
• Proportional joystick controls
• Thumb rocker steer
• Drive enable
• AC power to platform
• Horn
• Hour meter
• Tilt alarm
• Descent alarm
• Zero tailswing
• 355° non-continuous turntable rotation
• Locking turntable covers (Bi-Energy only)
• Telematics ready connector
• Lift Guard™ Contact Alarm
• Dual parallelogram for vertical wall tracking
Power
• 48V deep cycle battery pack
• 24V DC auxiliary power
• 13.3hp (9.9kW) Kubota T4f Z482 diesel
driven alternator. (Bi-energy model only)
• Battery charge indicator (BCI) (Standard
on BE)
• Universal 30A battery smart charger
Platform Options
• Steel 4 ft 8 in (1.42 m) with sliding
mid-rail (standard)
• Steel 3 ft 10 in (1.17 m) with sliding
mid-rail
Jib
• 4 ft (1.22 m) jib boom
Power
• 48V DC power source
Drive
• 2WD
Tire Options
• Industrial air-filled (standard ANSI/CSA)
• Industrial foam-filled (standard CE/AUS)
• Industrial non-marking air-filled
• Industrial non-marking foam-filled
• Sealant treated air-filled
Specifications
| Max Working Height | 40 ft 6 in | 12.52 m |
| Max Horizontal Reach | 22 ft 3 in | 4.57 m |
| Max Up and Over Clearance (riser extended) | 15 ft | 4.57 m |
| Platform Capacity | 500 lb | 227 kg |
