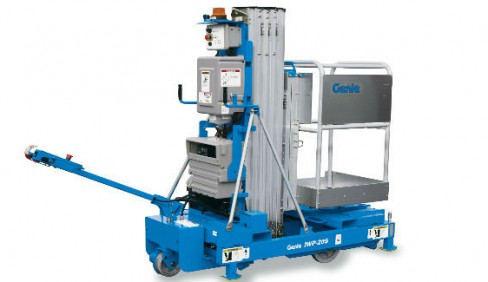

Genie IWP®-30S

Features
Measurements
IWP-30S
• 35 ft 6 in (11 m) working height
• 29 ft 6 in (9 m) platform height
• 3 ft 4 in (1.02 m) wide base width
• Up to 350 lbs (159 kg) lift capacity
Productivity
• Standard base (IWP™-20S and 25S only)
• Sliding mid-rail standard platform
• Auxiliary platform lowering
• Most rigid mast in the industry
• Standard base rolls through standard
doorways
• Wide base rolls through double doorways
• AC power to platform
• Dual activated up/down switch
• Ground fault interrupter lower receptacle
• Tie down attachment points
• Overhead crane attachment point
• Wide forklift pockets
• Built-in level sensing with interlocks
Power
• AC power 110V / 50-60 Hz
• AC power 220V / 50-60 Hz
• DC power with worldwide automatic
smart charging system (12V / 110V /
230V / 50-60 Hz)
Productivity
• Outreach option (IWP-20S only)
(not available for CSA)
• Operational warning light and
descent alarm package
• Tool tray
• Fluorescent tube caddy
• Platform locating laser light
Power
• Power wheel assist with dual
battery package*
• Dual battery package
• DC power 85V, 110V or 220V /
50-60 Hz
Platform
• Gated standard platform
• Gated narrow platform
• Standard fiberglass platform**
Base
• Wide base (IWP™-30 only)
Specifications
Working Height | 29 ft 6 in 9 m |
Capacity | 350 lb 159 kg |
Stowed Height | 6 ft 4 in 1.93 m |
Machine Width | 3 ft 4 in 1.02 m |
Weight | 1,430 lb |
