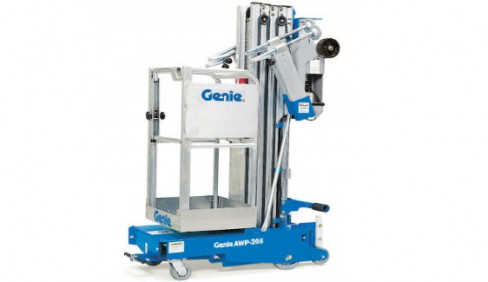

Genie AWP®-20S

Double tap to zoom



Features

Measurements

AWP-20S
• 26 ft 1 in (8.12 m) working height
• 20 ft 1 in (6.12 m) platform height
• 2 ft 5 in (.74 m) standard base width
• 2 ft 6 in (.76 m) RT base width
• 1 ft 11 in (.58 m) narrow base width
• Up to 350 lbs (159 kg) lift capacity

Productivity

• Auxiliary platform lowering
• Most rigid mast in the industry
• Rocker base system for maneuverability
• Tilt back frame
(standard on AWP™-36, -40)
• Easily rolls through standard doorways
• AC power to platform***
• Dual activated up/down switch
• Ground fault interrupt (ANSI / CSA only)
• Small outrigger footprints
• Outrigger storage sockets
• Easy loading in pickup trucks
• Tie down attachment points
• Overhead crane attachment point
• Wide, rear access forklift pockets
• LED lights indicate outrigger
installation

Power

• AC power 85V / 50-60 Hz
• AC power 110V / 50-60 Hz
• AC power 220V / 50-60 Hz
• DC power with worldwide automatic
smart charging system (12V / 110V /
230V / 50-60 Hz)

Productivity

• Super Straddle
• Descent light and alarm package
• Work station tool tray*
• Fluorescent tube caddy**
• Platform locating laser light**

Power

• Air motor power 1.5 hp (1.1 kW)
(AWP™-30 only)

Platform Options

• Gated standard platform
• Gated narrow platform
• Gated ultra-narrow platform
• Standard fiberglass platform

Base Options

• Rough terrain (RT) base with
pneumatic casters and rear wheels
(AWP™-20, -25, -30 only)
• Narrow base (AWP-20, AWP-25,
AWP-30 only)

Specifications

Working Height 20ft 1in  6.12m
Capacity 350lbs   159kg
Stowed Height 6ft 6in    1.98m
Machine Width 2 ft 5 in  74 cm
Weight 677lb
