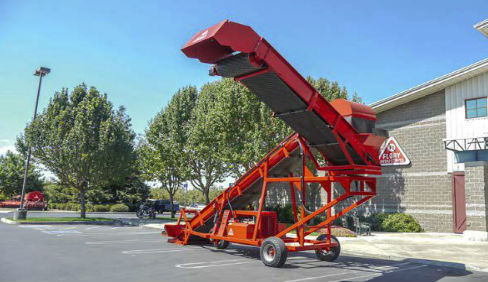

Flory 3690

Double tap to zoom



Features

Built with flexibility and durability in mind the 3690 Elevator will get your job done quickly and efficiently. The swivel uses a hydraulic motor and worm gear to provide a smooth motion. Adjustable output hood and 180° swivel allows you to put the product right where you want it the first time.

  • More Flexibility
  • Powered Drive wheel with large flotation tire
  • Swivel uses hydraulic motor and worm gear
  • Adjustable output hood

Specifications

Engine: Kubota Tier 4 Final
Fuel Type: Diesel
Horse Power: 74
Fuel Capacity: 37 gal
Hydraulic Oil Capacity: 30 gal
Belt Width: 36 in
Overall Width: 8 ft
Overall Length: 45.5 ft
Weigh: 9400 lbs
Discharge Height: 14.5 ft
Towed Height: 13 ft
Tires: (12 16.5) 12ply
