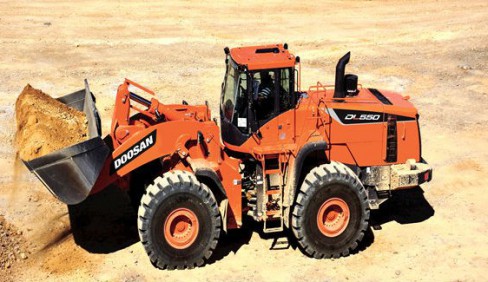

Doosan DL550-5 Wheel Loader

Features
With the highest horsepower, tipping capacity and breakout force in the Doosan wheel loader lineup, the DL550-5 is a heavy-duty performer that is agile and smooth despite its size.
Designed for the largest material handling applications, the DL550-5 is ideal for work in quarries, mines, demolition and industrial operations.
With the high lift option, you’ll gain additional lift height and reach. Easily load materials like cement, coal, grain, fertilizer, or waste into high-sided trucks, hoppers or mixers. High lift is ideal for processing plants, scrap and recycling facilities, and agricultural operations.
Through reduced cycle times and increased uptime, you'll improve your bottom line. It's powered by a diesel engine that delivers power or economy modes to match your job requirements. Operate in manual, automatic or semi-automatic transmission modes.
Other performance features on the DL550-5 include a powershift transmission with, optimized hydraulic pumps, Z-bar lift arm, return to dig, limited slip rear differential, and hydraulic locking front differential
Specifications
MODEL | Doosan DL550-5 |
Engine | |
Rated Flywheel Power (Gross) | 379.5 hp @ 1,800 rpm |
Rated Horse Power (Net) | 379.5 hp @ 1,800 rpm |
Max. Torque (Net) | 1302 lbf·ft @ 1,300 rpm |
Hydraulic System | |
Main Pump: Displacement | 100 cm³/rev |
Boom Speed - Up (Loaded) | 6.5 s (±0.5 s) |
Boom Speed - Down | 4.1 s (±0.4 s) |
Bucket Speed - Dump | 1.5 s (±0.3 s) |
Main Pump: Max. Flow Rate (each) | 55.48 gal/min |
Main Pump: Main Relief Pressure | 250 bar |
Total Cycle Time | 12.1 s (±0.3 s) |
Travel System/Drive Mechanism | |
Travel performance: Gradeability | 30° @ 58 % |
Traveling performance: Max. Tractive Effort | 68,343 lb |
Weights | |
Operating Weight | 69,897 lb |
Dimensions | |
Bucket Capacity | 5.7 m³ |
Bucket Width | 11' 2" |
Hinge Pin Height | 15' 8" |
Dump reach at 45° (fully raised) | 4' 7" |
Dump height at 45° (fully raised) | 11' 2" |
Overall Height | 12' 5" |
Overall Length | 31' 9" |
Wheel Base | 12' 1" |
Ground Clearance | 1' 6" |
External Turning Radius at Bucket Edge | 24' 7" |
Static Tipping Load (Straight) | 53,175 lb |
Static Tipping Load (Full Turn) | 46,947 lb |
Breakout Force | 55,303 lbf |
Rear Axle Oscillation | 20° |
Transmission | |
Travel Speed Forward - 1st gear | 3.91 mph |
Refill Capacities | |
Fuel Tank | 116.5 gal |
Cooling System | 15.43 gal |
Hydraulic System | 68.68 gal |
Hydraulic Tank | 63.93 gal |
