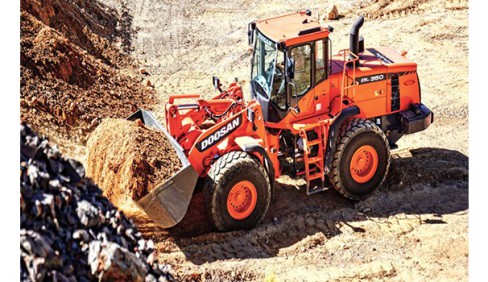

Doosan DL350-5 Wheel Loader

Features
Everywhere you look, you'll see why the DL350-5 wheel loader is an exceptional machine. With impressive power and outstanding torque, you'll be able to dump higher and reach farther - and you'll get more efficient fuel consumption too.
This machine packs more horsepower to make your work easier. Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axle. An efficient cooling system features an all-aluminum reversible fan, rubber mounts that reduce vibration.
With the high lift option, you’ll gain additional lift height and reach. Easily load materials like cement, coal, grain, fertilizer, or waste into high-sided trucks, hoppers or mixers. High lift is ideal for processing plants, scrap and recycling facilities, and agricultural operations.
Multiple cab improvements make your work easier and more comfortable. With class-leading visibility, you'll see your work better. You'll remain comfortable with automatic air conditioning, an improved steering column, and ergonomically placed FnR joystick controls. The air suspension seat features a right-hand control stand that’s integrated into the seat assembly for increase controllability. Additional features include heated mirrors with better positioning, a sun visor, and an optional rearview camera.
Specifications
MODEL | Doosan DL350-5 |
Engine | |
Rated Flywheel Power (Gross) | 270.9 hp @ 1,800 rpm |
Rated Horse Power (Net) | 270.9 hp @ 1,800 rpm |
Max. Torque (Net) | 940 lbf·ft @ 1,400 rpm |
Hydraulic System | |
Main Pump: Displacement | 74 cm³/rev |
Boom Speed - Up (Loaded) | 5.9 s (±0.5 s) |
Boom Speed - Down | 3.5 s (±0.4 s) |
Bucket Speed - Dump | 1.4 s (±0.3 s) |
Main Pump: Max. Flow Rate (each) | 76.61 gal/min |
Main Pump: Main Relief Pressure | 250 bar |
Total Cycle Time | 10.8 s (±0.3 s) |
Travel System/Drive Mechanism | |
Travel performance: Gradeability | 27° @ 51 % |
Traveling performance: Max. Tractive Effort | 40,345 lb |
Weights | |
Operating Weight | 43,541 lb |
Dimensions | |
Bucket Capacity | 3.7 m³ |
Bucket Width | 9' 10" |
Hinge Pin Height | 13' 8" |
Dump reach at 45° (fully raised) | 4' 0" |
Dump height at 45° (fully raised) | 9' 11" |
Overall Height | 11' 4" |
Overall Length | 27' 3" |
Wheel Base | 10' 9" |
Ground Clearance | 1' 4" |
External Turning Radius at Bucket Edge | 21' 8" |
Static Tipping Load (Straight) | 34,855 lb |
Static Tipping Load (Full Turn) | 30,777 lb |
Breakout Force | 36,869 lbf |
Rear Axle Oscillation | 24° |
Transmission | |
Travel Speed Forward - 1st gear | 3.79 mph |
Refill Capacities | |
Fuel Tank | 67.63 gal |
Cooling System | 11.89 gal |
Hydraulic System | 58.12 gal |
Hydraulic Tank | 47.55 gal |
