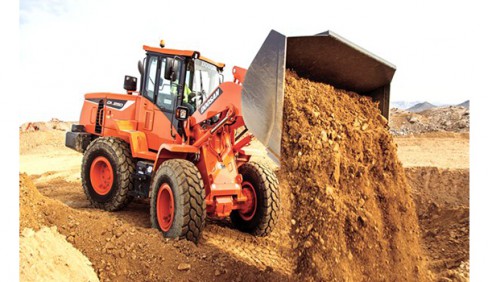

Doosan DL250-5 Wheel Loader

Double tap to zoom



Tough jobs don't stand a chance with the DL250-5 wheel loader. With an excellent combination of breakout force, size and lift capacity, it's a highly-capable machine for many applications.

It's ideally sized to handle a wide range of material handling tasks, from loading and transporting sand and gravel to snow and storm debris removal. With its High Lift option, the DL250-5 will easily load stockpiled, light materials like grain, fertilizer, coal or waste into high-sided trucks or hoppers.

Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axles.

With the high lift option, you’ll gain additional lift height and reach. Easily load materials like cement, coal, grain, fertilizer, or waste into high-sided trucks, hoppers or mixers. High lift is ideal for processing plants, scrap and recycling facilities, and agricultural operations.

An efficient cooling system features an all-aluminum reversible fan, rubber mounts that reduce vibration.

To help save valuable diesel fuel, auto-shutdown comes standard. When enabled, the feature will shut down the loader’s engine when the preset idle time is met. Operators can configure the idle time from 3 to 60 minutes.

From the comfortable cab, it's easy to focus on your work. You're surrounded by more space, class-leading visibility, automatic air conditioning, an improved steering column, and ergonomically placed joystick controls. The air suspension seat features a right-hand control stand that’s integrated into the seat assembly for increase controllability. Additional features include heated mirrors, a sun visor, and an optional rearview camera.


MODEL Doosan DL250-5
Rated Flywheel Power (Gross) 171.7 hp @ 2,100 rpm
Rated Horse Power (Net) 171.7 hp @ 2,100 rpm
Max. Torque (Net) 593 lbf·ft @ 1,400 rpm
Hydraulic System
Main Pump: Displacement 74 cm³/rev
Boom Speed - Up (Loaded) 6 s (±0.5 s)
Boom Speed - Down 3.5 s (±0.4 s)
Bucket Speed - Dump 1.4 s (±0.3 s)
Main Pump: Max. Flow Rate (each) 40.95 gal/min
Main Pump: Main Relief Pressure 265 bar
Total Cycle Time 10.9 s (±0.3 s)
Travel System/Drive Mechanism
Travel performance: Gradeability 30° @ 58 %
Traveling performance: Max. Tractive Effort 26,455 lb
Operating Weight 30,115 lb
Bucket Capacity 2.5 m³
Bucket Width 8' 11"
Hinge Pin Height 12' 7"
Dump reach at 45° (fully raised) 3' 6"
Dump height at 45° (fully raised) 9' 2"
Overall Height 10' 9"
Overall Length 24' 6"
Wheel Base 9' 10"
Ground Clearance 1' 5"
External Turning Radius at Bucket Edge 19' 9"
Static Tipping Load (Straight) 23,997 lb
Static Tipping Load (Full Turn) 21,186 lb
Breakout Force 24,055 lbf
Rear Axle Oscillation 22°
Travel Speed Forward - 1st gear 4.1 mph
Refill Capacities
Fuel Tank 62.08 gal
Cooling System 8.29 gal
Hydraulic System 39.63 gal
Hydraulic Tank 31.7 gal
