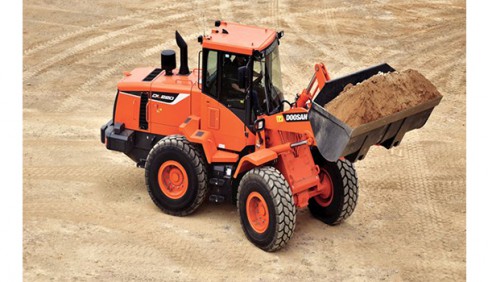

Doosan DL220-5 Wheel Loader

Double tap to zoom



Load and carry applications will meet their match with the DL220-5 wheel loader. It’s ideally sized to fit many state, county and municipal government requirements.

Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axles.

With the high lift option, you’ll gain additional lift height and reach. Easily load materials like cement, coal, grain, fertilizer, or waste into high-sided trucks, hoppers or mixers. High lift is ideal for processing plants, scrap and recycling facilities, and agricultural operations.

To help save valuable diesel fuel, auto idle and auto-shutdown and come standard. Auto idle automatically reduces the engine RPM to standby idle when the steering wheel or joystick control lever, isn’t utilized for a few seconds. When enabled, auto shutdown will stop the engine when the preset idle time is met. Operators can configure the idle time from 3 to 60 minutes.

Further optimize your operation by choosing the best power mode for your work. Choose between power mode, standard mode, eco mode, and auto idle.

•    Economy Mode: Minimizes fuel use and engine sound levels in load and carry operations.
•    Standard Mode: Provides optimized fuel consumption for general work.
•    Power Mode: Delivers the highest level of performance during demanding tasks.

An intelligently designed cab makes it easy to focus on your work. You're surrounded by more foot space, class-leading visibility, automatic air conditioning, and ergonomically placed joystick controls. A standard color LCD display provides helpful maintenance history and monitoring information, including a fuel consumption gauge.

The air suspension seat features a right-hand control stand that’s integrated into the seat assembly for improved controllability. Additional features include heated mirrors, a sun visor, and an optional rearview camera.

An efficient cooling system features an all-aluminum reversible fan, rubber mounts that reduce vibration.

Maintenance is quick and easy on the DL220-5 wheel loader. Easily reach oil sampling and pressure test ports, and engine and coolant drains. Monitor your Doosan heavy equipment and manage maintenance to reduce operating costs with a 3-year subscription to Doosan Telematics


MODEL Doosan DL220-5
Rated Flywheel Power (Gross) 160 hp @ 2,100 rpm
Rated Horse Power (Net) 160 hp @ 2,100 rpm
Max. Torque (Net) 542 lbf·ft @ 1,400 rpm
Hydraulic System
Main Pump: Displacement 74 cm³/rev
Boom Speed - Up (Loaded) 6 s (±0.5 s)
Boom Speed - Down 3.5 s (±0.4 s)
Bucket Speed - Dump 1.2 s (±0.3 s)
Main Pump: Max. Flow Rate (each) 40.95 gal/min
Main Pump: Main Relief Pressure 250 bar
Total Cycle Time 10.7 s (±0.3 s)
Travel System/Drive Mechanism
Travel performance: Gradeability 30° @ 58 %
Traveling performance: Max. Tractive Effort 24,692 lb
Operating Weight 27,381 lb
Bucket Capacity 2.3 m³
Bucket Width 8' 4"
Hinge Pin Height 12' 7"
Dump reach at 45° (fully raised) 3' 5"
Dump height at 45° (fully raised) 9' 3"
Overall Height 10' 9"
Overall Length 24' 5"
Wheel Base 9' 10"
Ground Clearance 1' 5"
External Turning Radius at Bucket Edge 19' 6"
Static Tipping Load (Straight) 21,231 lb
Static Tipping Load (Full Turn) 18,750 lb
Breakout Force 22,706 lbf
Rear Axle Oscillation 22°
Travel Speed Forward - 1st gear 4.35 mph
Refill Capacities
Fuel Tank 62.08 gal
Cooling System 8.29 gal
Hydraulic System 39.63 gal
Hydraulic Tank 31.7 gal
