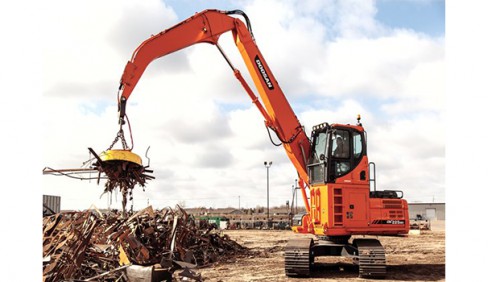

Browse EquipmentDoosan DX225MH-3 Material Handler
Material Handlers DX225MH-3 Material Handler
Overview:
Rapid cycle times, efficient hydraulics and added engine power.
Interim Tier 4 (iT4) Emissions
162 hp @ 1,800 rpm HP, SAE Net
60,848 lb Weight
35' 5" Reach (Ground)
Features
With purpose-built material handling features like a fixed 4 ft. cab riser, straight boom and droop nose stick, sandwiched counterweight, rotate grapple ready hydraulics, and additional guarding, the DX225MH-3 will stand up to many tough material handling tasks.
Careful design, high pressure common rail fuel injection and four valves per cylinder deliver increased torque and efficient fuel consumption. High-capacity pumps improve productivity, while the swing drive provides rapid cycles.
In addition to four power modes, the DX225MH-3 includes lifting work mode, which provides increased pump torque, low engine RPMs, and an automatic power boost.
Cooling features of the DX225MH-3 include an electric fan clutch, which uses a hydraulic oil and engine coolant.
Specifications
| MODEL | DX225MH-3 |
| Engine | |
| Rated Flywheel Power (Gross) | 166.3 hp @ 1,800 rpm |
| Rated Horse Power (Net) | 162.3 hp @ 1,800 rpm |
| Engine Emissions Tier (EPA) | iT4 |
| Hydraulic System | |
| Main Pump: Displacement | 114.7 cm³/rev |
| Control Valve: Relief Valve Pressure (Normal) | 330 kgf/cm² |
| Control Valve: Relief Valve Pressure (Boost) | 350 kgf/cm² |
| Main Pump: Max. Flow Rate (each) | 54.55 gal/min |
| Main Pump: Main Relief Pressure | 330 bar |
| Undercarriage | |
| Upper Rollers: Quantity Per Side | 2 |
| Track Length | 14' 7" |
| Track Link: Track Gauge | 7' 10" |
| Swing Mechanism | |
| Swing Performance: Max Swing Torque | 60757 lbf·ft |
| Swing Performance: Max Swing Speed (At Efficiency) | 10.9 rpm |
| Travel System/Drive Mechanism | |
| Travel performance: Traction Force (Highest Value) | 199197 lbf·ft |
| Travel performance: Traveling Speed - Low (XXX/) | 1.86 mph |
| Travel performance: Traveling Speed - High (/XXX) | 3.42 mph |
| Weights | |
| Operating Weight | 60,848 lb |
| Standard Boom Length | 21.33 ft |
| Standard Arm Length | 14.76 ft |
| Shoe Width | 1' 11" |
| Dimensions | |
| Shipping Height - Hose (With Attachment) | 9' 10" |
| Shipping Length (Without Attachment) | 31' 1" |
| Shipping Width (Standard) | 9' 9" |
| Overall Height Over Cab | 9' 9" |
| Working Range | |
| Max Digging Reach (Ground) | 35' 5" |
| Max Digging Depth | n/a |
| Max Loading Height | 40' 0" |
