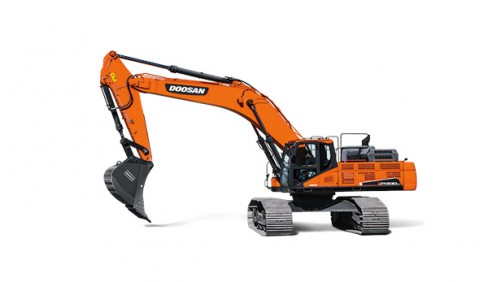

Develon DX530LC-5

Double tap to zoom



Higher productivity. More efficiency.
Solid performance, excellent fuel efficiency, operator-focused working environment and exceptional durability drive the Doosan® DX530LC-5 to deliver consistent results.

Upgrade your digging capabilities with the DX530LC-5. Receive outstanding performance with the high pressure common rail fuel injected engine and electronic power optimizing system (EPOS). Get increased torque, faster cycle times and efficient fuel consumption. Receive consistent performance from the powerful hydraulic pumps.

Comfort and Convenience
Controls for machine functions are simple and placed for your convenience. Easily change the control pattern from ISO to BHL to match your preference. Two-way auxiliary hydraulics can now be controlled via a joystick switches or the new optional foot pedal control.

Comfort advantages include a roomy cab, clear controls, excellent visibility, high-performance air conditioning and extra storage. The reclining, height and weight- adjustable standard suspension seat has a headrest and adjustable armrest. An emergency engine stop is located at the base of the seat.

Reduced, Simplifies Maintenance.
Durable materials and extensive testing ensure long-term reliability. The D-profile frame and x-chassis adds strength, while the arm assembly is reinforced for longer life. The bucket pivot pin features a polymer shim to reduce wear and increase grease retention.

Longer maintenance intervals - and easy maintenance - minimize your time in the shop. Key maintenance areas are easy to access, and grease points are centralized for easy maintenance. The high performance oil filter extends oil change intervals to 500 hours. Monitor your Doosan heavy equipment and manage maintenance to reduce operating costs with Doosan Connect Telematics.

Tier 4 Technology
To reach Tier 4 emissions standards, the DX530LC-5 incorporates a high-pressure common-rail (HPCR) fuel delivery system as well as cooled exhaust gas recirculation (CEGR) combined with a diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR). Read about our Tier 4 technologies to learn more.


MODEL Doosan DX530LC-5
Rated Flywheel Power (Gross) 379.5 hp @ 1,800 rpm (SAE-J1349)
Rated Horse Power (Net) 372.8 hp @ 1,800 rpm
Max. Torque (Net) 1298 lbf·ft @ 1,300 rpm
Engine Emissions Tier (EPA) T4
Hydraulic System
Main Pump: Displacement 12.2 in³/rev
Control Valve: Relief Valve Pressure (Normal) 4694 psi
Control Valve: Relief Valve Pressure (Boost) 4978 psi
Main Pump: Max. Flow Rate (each) 93.78 gal/min
Upper Rollers: Quantity Per Side 3
Lower Rollers: Quantity Per Side 9
Track Length 17' 10"
Track Link: Track Gauge 10' 9"
Swing Mechanism
Swing Performance: Max Swing Torque 145601 lbf·ft
Swing Performance: Max Swing Speed (At Efficiency) 8.6 rpm
Travel System/Drive Mechanism
Travel performance: Traction Force (Highest Value) 3,124,599 lbf
Travel performance: Traveling Speed - Low (XXX/) 1.93 mph
Travel performance: Traveling Speed - High (/XXX) 3.36 mph
Travel performance: Gradeability 70°
Operating Weight 116,576 lb
Standard Boom Length 23.29 ft
Standard Arm Length 9.51 ft
Standard Bucket Size 3.13 yd³
Shoe Width 2' 11"
Shipping Height - Hose (With Attachment) 12' 9"
Shipping Length (Without Attachment) 40' 5"
Shipping Width (Standard) 11' 11"
Overall Height Over Cab 10' 11"
Working Range
Max Digging Reach (Ground) 37' 6"
Max Digging Depth 24' 0"
Max Loading Height 25' 4"
Digging Force (ISO)
Arm Digging Force - Pressure up 5800 lbf
Bucket Digging Force - Pressure up 6924 lbf
Arm Digging Force - Normal 5485 lbf
Refill Capacities
Fuel Tank 180.96 gal
Hydraulic System 132.09 gal
Engine Coolant 13.47 gal
Engine Oil 11.89 gal
Hydraulic Tank 103.03 gal
Noise Level: Guaranteed Sound Power Level 106 dBA
Noise Level: Operator 72 dBA
Lift Capacity
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground 39,460 lb @ 20 ft
Lifting Capacity over front @ Horizontal Distance - Ground Level 43,480 lb @ 20 ft
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground 38,540 lb @ 20 ft
