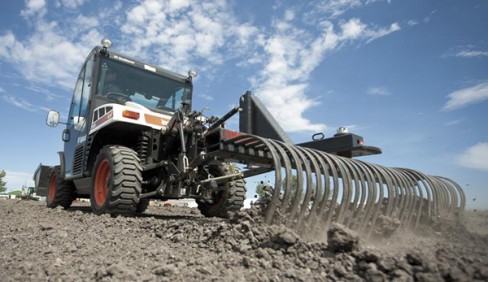

Bobcat Toolcat 5610 / NOT AVAILABLE

Features
Performance Features
Strength to push through a variety of demanding jobs.
Uptime Features
Reliability when you need it most.
Comfort Features
Designed with premium comfort features everywhere you look.
Specifications
Model | Bobcat Toolcat 5610 |
ENGINE | |
Emissions Tier (EPA) | Tier 4 |
Engine Cooling | Liquid |
Engine Fuel | Diesel |
Horsepower | 61 hp |
Turbocharged Engine | Optional |
PERFORMANCE | |
Rated Operating Capacity (SAE) | 1,500 lb |
Operating Weight | 5710 lb |
Travel Speed | 17 mph |
Travel Speed - Max | 17 mph |
Travel Speed - Low | 8 mph |
Travel Speed - Reverse | 8 mph |
Machine Rated Capacity | 2200 lb |
3-Point Hitch | Category 1 |
Lift Capacity at 24" behind Lift Point | 1775 lb |
Rear PTO System | Independent |
Rear PTO - RPM | 540 |
PTO HP | 25 hp |
CAPACITIES | |
Fuel Tank | 20 gal |
Cargo Box Bed Load Capacity | 4200 lb |
HYDRAULIC SYSTEM | |
Auxiliary Std Flow | 18.9 gal/min |
Auxiliary Pressure | 3,000 psi |
Auxiliary High Flow | 27.9 gal/min |
DIMENSION | |
Length | 180.8 in |
Length without Attachment | 153.8 in |
Width | 60 in |
Width (with bucket) | 62 in |
Height | 81 in |
Height with Operator Cab | 81 in |
Cargo Box Maximum Load | n/a |
Ground Clearance | 9.2 in |
Turning Radius (AWS Mode) | 50.5 in |
Outside Turning Diameter | 210 in |
FEATURES | |
Heater Air Conditioning | Standard |
Work Lights | Standard |
Enclosed Operator Cab (ROPS/FOPS) | Standard |
Auxiliary Hydraulics | Standard |
Bob-Tach Attachment System | Standard |
Joystick Control | Standard |
Hydrostatic Transmission | Standard |
Air Conditioning | Standard |
Cab Enclosure | Standard |
