Browse EquipmentBobcat S70
Skid-Steer Loaders S70
Overview:

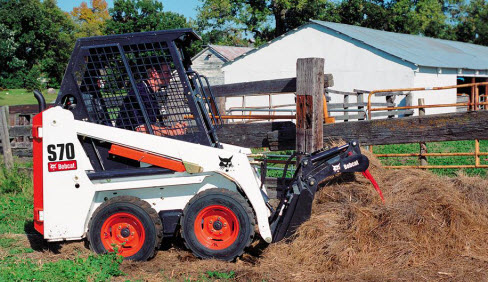

The compact Bobcat® S70 skid-steer loader is small enough to get in the tight spots, yet tough enough to get you out. This agile little workhorse is only 6 ft. tall and 3 ft. wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings. It's the per... + Read More
Features
Performance Features
Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.
Attachment Features
Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.
Superior Lift Arms
With two lift path options, Bobcat® skid-steer loaders have you covered. Vertical lift path machines provide more reach at full lift height, while radius lift path models offer maximum reach at truck bed height. The durable and patented single-plane design reduces side-to-side lift arm movement and minimizes load on the pins.
Specifications
| Model | Bobcat S70 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 23.5 hp |
| Turbocharged Engine | N/A |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) | 700 lb |
| Tipping Load | 1512 lb |
| Operating Weight | 2795 lb |
| Travel Speed | 6.1 mph |
| Travel Speed (2-speed option) | N/A |
| CAPACITIES | |
| Fuel Tank | 6.5 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers | 3,000 psi |
| Auxiliary Std Flow | 9.8 gal/min |
| Auxiliary High Flow | n/a |
| DIMENSION | |
| Length | 75.8 in |
| Length without Attachment | 75.8 in |
| Length with Standard Bucket | 97.3 in |
| Width | 35.5 in |
| Width (with bucket) | 36 in |
| Height | 71.4 in |
| Height with Operator Cab | 71.4 in |
| Height to Bucket Hinge Pin | 94.5 in |
| Reach @ Maximum Height | 15.8 in |
| Turning Radius | 58.7 in |
| Wheelbase | 28.4 in |
| FEATURES | |
| Joystick Control | N/A |
| Air Conditioning | N/A |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | N/A |
| Rear Window | Standard |
| Top Window | Optional |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Optional |
| Two Speed Travel | N/A |
| Deluxe Instrumentation | N/A |
| Engine Shutdown | N/A |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | N/A |
| Auxiliary Hydraulics | Standard |
| Spark Arrestor Muffler | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | N/A |
| ACS (Switchable Controls) | N/A |
| Ride Control | N/A |
| Rear Hydraulics | N/A |
| Horn | Standard |
