Browse EquipmentBobcat S570
Skid-Steer Loaders S570
Overview:

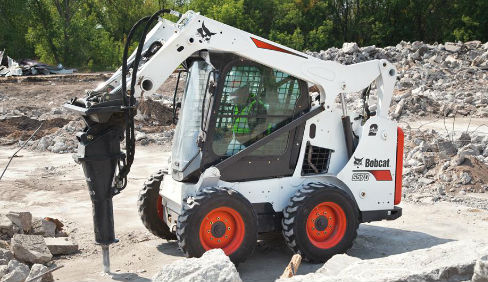

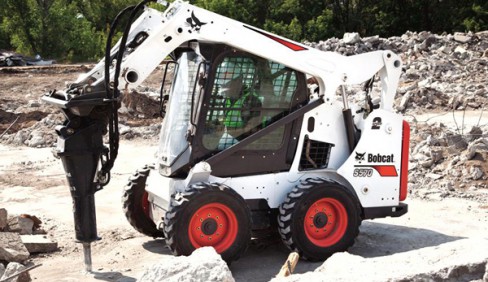

The vertical lift Bobcat® S570 skid-steer loader is ideal for clearing high-sided truck boxes and hoppers or placing pallets loaded with heavy materials. The S570 is powered by a Tier 4 diesel engine.
Features
Performance Features
Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.
Uptime Protection Features
With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.
Comfort Features
Climb into the large, comfortable cab and gain unbeatable visibility.
Serviceability Features
Reduce your operating costs through preventative maintenance that gets completed quickly.
Attachment Features
Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.
Specifications
| Model | Bobcat S570 |
| ENGINE | |
| Emissions Tier (EPA) | Tier 4 |
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 61 hp |
| Turbocharged Engine | Optional |
| PERFORMANCE | |
| Rated Operating Capacity (SAE) | 1,950 lb |
| Tipping Load | 3900 lb |
| Operating Weight | 6480 lb |
| Travel Speed | 7.4 mph |
| Travel Speed (2-speed option) | 11 mph |
| CAPACITIES | |
| Fuel Tank | 24.8 gal |
| HYDRAULIC SYSTEM | |
| System Relief @ Quick Couplers | 3,500 psi |
| Auxiliary Std Flow | 17.1 gal/min |
| Auxiliary High Flow | 26.7 gal/min |
| DIMENSION | |
| Length | 133 in |
| Length without Attachment | 104.6 in |
| Length with Standard Bucket | 133 in |
| Width | 64.7 in |
| Width (with bucket) | 68 in |
| Height | 77.8 in |
| Height with Operator Cab | 77.8 in |
| Height to Bucket Hinge Pin | 119 in |
| Reach @ Maximum Height | 32.6 in |
| Turning Radius | 79.7 in |
| Wheelbase | 42.6 in |
| FEATURES | |
| Joystick Control | Optional |
| Air Conditioning | Optional |
| Adjustable Seat | Standard |
| Backup Alarm | Standard |
| BICS System (Interlock) | Standard |
| Cab Enclosure | Optional |
| Sound Option | Optional |
| Cab Heater | Optional |
| Operating Lights | Standard |
| Parking Brake | Standard |
| Radio | Optional |
| Rear Window | Standard |
| Top Window | Standard |
| Lift-Arm Support | Standard |
| Seat Belt | Standard |
| Suspension Seat | Optional |
| Two Speed Travel | Optional |
| Deluxe Instrumentation | Optional |
| Engine Shutdown | Standard |
| Hydraulic Bucket Positioning | Optional |
| High Flow Option | Optional |
| Auxiliary Hydraulics | Standard |
| Bob-Tach Attachment System | Standard |
| Power Bob-Tach | Optional |
| ACS (Switchable Controls) | Optional |
| Ride Control | Optional |
| Rear Hydraulics | Standard |
| Horn | Standard |
