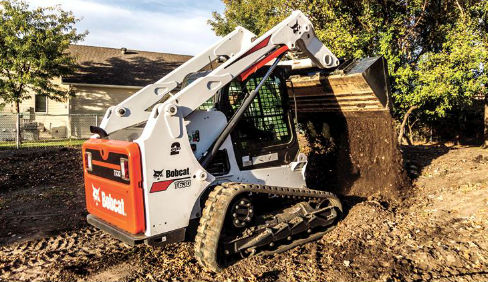

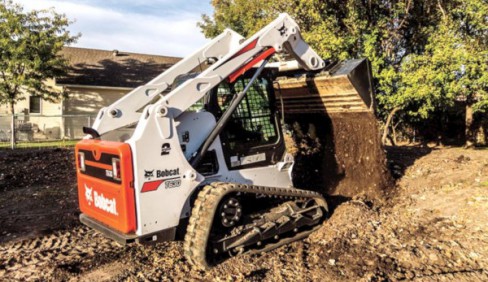

Bobcat T630 / NOT AVAILABLE
Unmatched power to help you push through your toughest jobs. Benefit from industry-leading breakout force, rated operating capacities, faster cycle times and quicker turns.
Uptime Protection Features
With features and systems that aren’t offered by others, Bobcat® skid-steer loaders are ready to work.
Climb into the large, comfortable cab and gain unbeatable visibility.
Reduce your operating costs through preventative maintenance that gets completed quickly.
Form a versatile team with your Bobcat® skid-steer loader and the most attachment options.
|Emissions Tier (EPA)||Tier 4|
|Rated Operating Capacity (SAE)||2,230 lb|
|Operating Capacity (50% of Tip)||3180 lb|
|Tipping Load||6371 lb|
|Operating Weight||8742 lb|
|Travel Speed||6.6 mph|
|Travel Speed (2-speed option)||10.7 mph|
|Ground Pressure (Rubber)||5.3 psi|
|Fuel Tank||27.5 gal|
|System Relief @ Quick Couplers||3,500 psi|
|Auxiliary Std Flow||23 gal/min|
|Auxiliary High Flow||30.5 gal/min|
|Length without Attachment||108.4 in|
|Length with Standard Bucket||136.8 in|
|Width (with bucket)||74 in|
|Height with Operator Cab||81.3 in|
|Height to Bucket Hinge Pin||121 in|
|Reach @ Maximum Height||24.1 in|
|Turning Radius||88.1 in|
|Length of track on ground||59 in|
|Track Width||12.6 in|
|Track Width - Optional||17.7 in|
|BICS System (Interlock)||Standard|
|Two Speed Travel||Optional|
|Hydraulic Bucket Positioning||Optional|
|High Flow Option||Optional|
|Bob-Tach Attachment System||Standard|
|ACS (Switchable Controls)||Optional|
