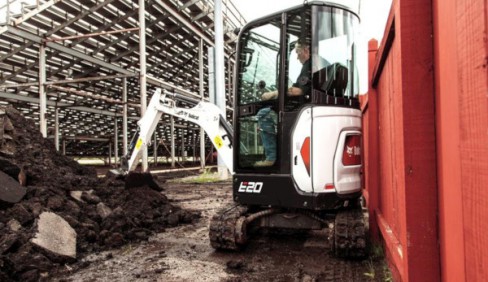

Bobcat E20

Double tap to zoom



Features

Performance Features

Unmatched power to help you push through your toughest jobs.

Uptime Protection Features

Intelligently designed components keep you on the job working.

Comfort Features

More standard comfort features make hard work easier.

Serviceability Features

Easy maintenance routines give you dependable performance and peace of mind.

Attachment Features

The industry leader in attachments and attachment-ready features.

Specifications

Model Bobcat E20
ENGINE
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,500 rpm
Horsepower 13.9 hp
Turbocharged Engine N/A
Optional Horsepower N/A
PERFORMANCE
Operating Weight 4,306 lb
Weight Class 2 t
Travel Speed - High 2.6 mph
Travel Speed - Low 1.3 mph
Arm Digging Force 2,086 lbf
Bucket Digging Force 4,684 lbf
Rated Lift Capacity 1098 lb
Lift Radius 118 in
Boom Swing - Left 80°
Boom Swing - Right 60°
Maximum Dig Depth 8.4 ft
Max Dump Height 8.8 ft
Maximum Reach at Ground Level 14 ft
CAPACITIES
Fuel Tank 5 gal
HYDRAULIC SYSTEM
Auxiliary Std Flow 7.9 gal/min
Auxiliary Pressure 2,610 psi
DIMENSION
Length 145.2 in
Overall Length in Travel Position 145.2 in
Width 39 in
Height 90.4 in
Height with Operator Cab 90.4 in
FEATURES
Air Conditioning N/A
Cab Enclosure Optional
Cab Heater Optional
Heater Air Conditioning N/A
Radio Optional
Tail Swing Type Zero
Engine Shutdown Standard
Auxiliary Hydraulics Standard
Secondary Auxiliary Hydraulics N/A
Quick Tach System N/A
Rubber Track Standard
Selectable Auxiliary Hydraulic Flow Optional
Angle Blade N/A
