Browse EquipmentBobcat E50
Compact Excavators E50
Overview:

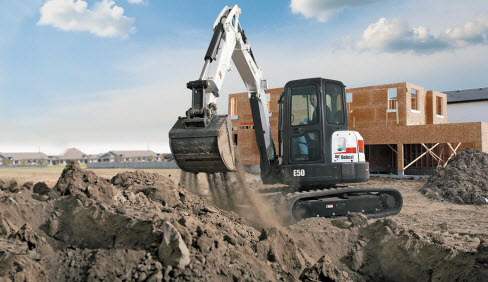

A standout in the 4-to-5-ton size class, the Bobcat® E50 compact excavator (mini excavator) works in confined areas without sacrificing digging performance. It features minimal tail swing action with less than an inch of tail overhang. The Tier 4-compliant E50 is available with a long arm option that maximizes dig dept... + Read More
Features
Performance Features
Unmatched power to help you push through your toughest jobs.
Uptime Protection Features
Intelligently designed components keep you on the job working.
Comfort Features
More standard comfort features make hard work easier.
Serviceability Features
Easy maintenance routines give you dependable performance and peace of mind.
Attachment Features
The industry leader in attachments and attachment-ready features.
Specifications
| Model | Bobcat E50 Standard | Bobcat E50 Long Arm |
| ENGINE | ||
| Emissions Tier (EPA) | Tier 4 | Tier 4 |
| Engine Fuel | Diesel | Diesel |
| Maximum Governed RPM | 2,200 rpm | 2,200 rpm |
| Horsepower | 49.8 hp | 49.8 hp |
| Turbocharged Engine | Optional | Optional |
| PERFORMANCE | ||
| Operating Weight | 10,677 lb | 11,195 lb |
| Weight Class | 4.8 t | 5.1 t |
| Travel Speed - High | 3.1 mph | 3.1 mph |
| Travel Speed - Low | 1.9 mph | 1.9 mph |
| Arm Digging Force | 6,744 lbf | 5,751 lbf |
| Bucket Digging Force | 8,977 lbf | 8,977 lbf |
| Rated Lift Capacity | 6034 lb | 5926 lb |
| Lift Radius | 118 in | 118 in |
| Boom Swing - Left | 75° | 75° |
| Boom Swing - Right | 50° | 50° |
| Maximum Dig Depth | 11.6 ft | 12.9 ft |
| Max Dump Height | 12.7 ft | 13.6 ft |
| Maximum Reach at Ground Level | 17.3 ft | 18.2 ft |
| CAPACITIES | ||
| Fuel Tank | 21.1 gal | 21.1 gal |
| HYDRAULIC SYSTEM | ||
| Auxiliary Std Flow | 20 gal/min | 20 gal/min |
| Auxiliary Pressure | 3,045 psi | 3,045 psi |
| DIMENSION | ||
| Length | 218.7 in | 219 in |
| Overall Length in Travel Position | 218.7 in | 219 in |
| Width | 77.2 in | 77.2 in |
| Height | 99.7 in | 99.7 in |
| Height with Operator Cab | 99.7 in | 99.7 in |
| FEATURES | ||
| Air Conditioning | Optional | Optional |
| Cab Enclosure | Optional | Optional |
| Cab Heater | Optional | Optional |
| Heater Air Conditioning | Optional | Optional |
| Radio | Optional | Optional |
| Tail Swing Type | Minimal | Minimal |
| Engine Shutdown | Standard | Standard |
| Auxiliary Hydraulics | Standard | Standard |
| Secondary Auxiliary Hydraulics | Optional | Optional |
| Quick Tach System | Standard | Standard |
| Rubber Track | Standard | Standard |
| Selectable Auxiliary Hydraulic Flow | Standard | Standard |
| Angle Blade | Optional | Optional |
