Browse EquipmentBobcat E35
Compact Excavators E35
Overview:

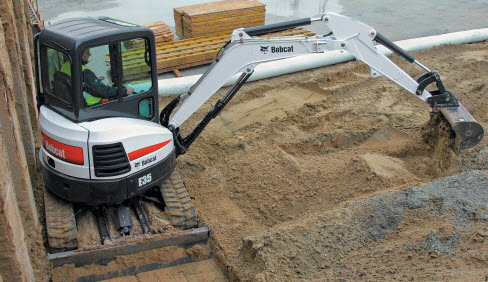

A popular choice in the 3-ton size class, the Bobcat® E35 compact excavator (mini excavator) excels on space-constrained jobsites, such as next to buildings or other obstacles. The Zero Tail Swing (ZTS) provides unrestricted rotation, greater flexibility and reduced potential for damage to the machine and surrounding p... + Read More
Features
Performance Features
Unmatched power to help you push through your toughest jobs.
Uptime Protection Features
Intelligently designed components keep you on the job working.
Comfort Features
More standard comfort features make hard work easier.
Serviceability Features
Easy maintenance routines give you dependable performance and peace of mind.
Attachment Features
The industry leader in attachments and attachment-ready features.
Specifications
| Model | Bobcat E35 Standard | Bobcat E35 Extandable Arm |
| ENGINE | ||
| Emissions Tier (EPA) | Tier 4 | Tier 4 |
| Engine Fuel | Diesel | Diesel |
| Maximum Governed RPM | 2,400 rpm | 2,400 rpm |
| Horsepower | 33.5 hp | 33.5 hp |
| Turbocharged Engine | N/A | Optional |
| PERFORMANCE | ||
| Operating Weight | 7,468 lb | 8,374 lb |
| Weight Class | 3.4 t | 3.8 t |
| Travel Speed - High | 2.9 mph | 2.9 mph |
| Travel Speed - Low | 1.6 mph | 1.6 mph |
| Arm Digging Force | 4,589 lbf | 4,478 lbf |
| Bucket Digging Force | 6,968 lbf | 6,968 lbf |
| Rated Lift Capacity | 2866 lb | 2666 lb |
| Lift Radius | 118 in | 118 in |
| Boom Swing - Left | 75° | 75° |
| Boom Swing - Right | 55° | 55° |
| Maximum Dig Depth | 10.2 ft | 12.9 ft |
| Max Dump Height | 11 ft | 12.5 ft |
| Maximum Reach at Ground Level | 17.2 ft | 19.7 ft |
| CAPACITIES | ||
| Fuel Tank | 14 gal | 14 gal |
| HYDRAULIC SYSTEM | ||
| Auxiliary Std Flow | 16.9 gal/min | 16.9 gal/min |
| Auxiliary Pressure | 2,987 psi | 2,987 psi |
| DIMENSION | ||
| Length | 189.7 in | 190.3 in |
| Overall Length in Travel Position | 189.7 in | 190.3 in |
| Width | 69 in | 69 in |
| Height | 95.6 in | 95.6 in |
| Height with Operator Cab | 95.6 in | 95.6 in |
| FEATURES | ||
| Air Conditioning | Optional | Optional |
| Cab Enclosure | Optional | Optional |
| Cab Heater | Optional | Optional |
| Heater Air Conditioning | Optional | Optional |
| Radio | Optional | Optional |
| Tail Swing Type | Zero | Zero |
| Engine Shutdown | Standard | Standard |
| Auxiliary Hydraulics | Standard | Standard |
| Secondary Auxiliary Hydraulics | Optional | Optional |
| Quick Tach System | Standard | Standard |
| Rubber Track | Standard | Standard |
| Selectable Auxiliary Hydraulic Flow | Standard | Standard |
| Angle Blade | Optional | Optional |
