Browse EquipmentBobcat E26
Compact Excavators E26
Overview:

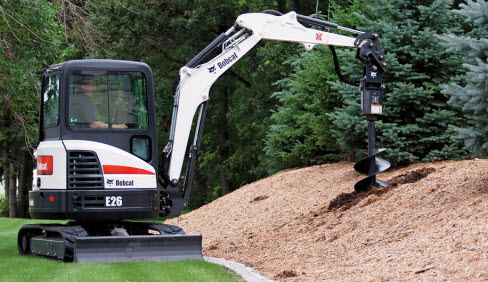

The Bobcat® E26 compact excavator (mini excavator) features minimal tail swing to reduce the risk of damage to your machine and surrounding objects. With its compact size and excellent flotation, the Tier 4-compliant E26 easily maneuvers established lawns, crowded jobsites and sensitive surfaces. The E26 is also available in a long arm model.
Features
Performance Features
Unmatched power to help you push through your toughest jobs.
Uptime Protection Features
Intelligently designed components keep you on the job working.
Comfort Features
More standard comfort features make hard work easier.
Serviceability Features
Easy maintenance routines give you dependable performance and peace of mind.
Attachment Features
The industry leader in attachments and attachment-ready features.
Specifications
| Model | Bobcat E26 Standard |
Bobcat E26 Long Arm |
| ENGINE | ||
| Emissions Tier (EPA) | Tier 4 | Tier 4 |
| Engine Fuel | Diesel | |
| Maximum Governed RPM | 2,500 rpm | 2,500 rpm |
| Horsepower | 24.8 hp | 24.8 hp |
| Turbocharged Engine | N/A | N/A |
| PERFORMANCE | ||
| Operating Weight | 5,666 lb | 6,091 lb |
| Weight Class | 2.6 t | 2.8 t |
| Travel Speed - High | 2.8 mph | 2.8 mph |
| Travel Speed - Low | 1.5 mph | 1.5 mph |
| Arm Digging Force | 3,552 lb | 2,967 lbf |
| Bucket Digging Force | 4,991 lb | 4,991 lbf |
| Rated Lift Capacity | 1997 lb | 1896 lb |
| Lift Radius |
118 in
|
|
| Boom Swing - Left |
60°
|
|
| Boom Swing - Right |
60°
|
|
| Maximum Dig Depth | 8.5 ft | 9.5 ft |
| Max Dump Height | 9.9 ft | 10.5 ft |
| Maximum Reach at Ground Level | 14.9 ft | 15.9 ft |
| CAPACITIES | ||
| Fuel Tank |
9.1 gal
|
|
| HYDRAULIC SYSTEM | ||
| Auxiliary Std Flow |
12.5 gal/min
|
|
| Auxiliary Pressure | 2,610 psi | 2,610 psi |
| DIMENSION | ||
| Length | 170.4 in | 170.4 in |
| Overall Length in Travel Position | 170.4 in | 170.4 in |
| Width | 59.6 in | 59.6 in |
| Height | 94.9 in | 94.9 in |
| Height with Operator Cab | 94.9 in | 94.9 in |
| FEATURES | ||
| Air Conditioning | Optional | Optional |
| Cab Enclosure | Optional | Optional |
| Cab Heater | Optional | Optional |
| Heater Air Conditioning | Optional | Optional |
| Radio | Optional | Optional |
| Tail Swing Type | Minimal | Minimal |
| Engine Shutdown | Standard | Standard |
| Auxiliary Hydraulics | Standard | Standard |
| Secondary Auxiliary Hydraulics | Optional | Optional |
| Quick Tach System | Standard | Standard |
| Rubber Track | Standard | Standard |
| Selectable Auxiliary Hydraulic Flow | N/A | N/A |
| Angle Blade | N/A | N/A |
