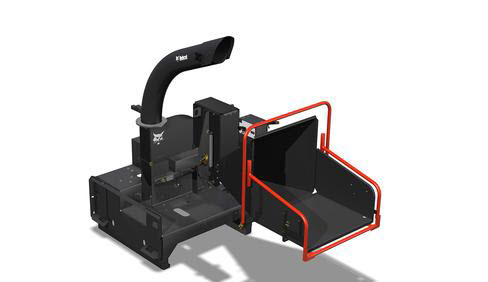

Bobcat Chipper, 5A Standard Flow
Using a powerful disk chipping action, the chipper attachment continuously mulches materials – up to 5-in. in diameter – such as trees, limbs, branches, and saplings. The chipper attachment is ideal for tree removal, pruning services, municipalities, parks and recreation, rentals, and personal property maintenance.
Unlike pull-type chippers, the Bobcat® chipper attachment can perform chipping jobs virtually anywhere! The compact design of the chipper attachment can tackle tough terrain. And it operates in any environment where a loader can travel, allowing wood mulching right on site rather than having to haul wood somewhere else.
- Mulch branches, trees and other debris
How It Works
A hydraulic power feed allows the feed roller to move branches into the chipper at a constant speed. The chipper attachment breaks brush into small chips and discharges the chips through the discharge chute, which can be rotated 360-degrees for maximum angle positioning. Also, the discharged small chips decompose faster than branches or large chips.
The 5A chipper features a 5-in. feeder opening and chips material up to 3 in. in diameter. The 8B chipper offers even more versatility, with a 9-in. feeder that chips materials up to 5 in. in diameter.
- Adjustable Deflector: Located on the discharge chute, the adjustable deflector reduces the distance chips are thrown from the attachment and deflects the chips into a desired work area, allowing for more control over discharged materials.
- Chipper Discharge Chute: Rotates 360-degrees, providing maximum angle position for discharging materials without having to reposition the chipper attachment. Adjustable deflector also helps direct chips in the desired direction.
- Chipper Disk: Made from 1.25” steel, the chipper disk provides heavy-duty strength when cutting heavy material, allowing the chipper attachment to maintain momentum while cutting.
- Dual Mounting Locations: Allow the intake housing to be mounted to either the front or right side of the machine, allowing the chipper attachment to accommodate different applications.
- Four Tool-Steel Blades: Positioned at different angles, the four blades provide optimum cutting performance while the tool-steel extends blade life. Blades are also reversible for twice the life between sharpening, decreasing maintenance time and maximizing productivity.
- Hydraulic Power Feed: Directs branches into the chipper attachment. The operator only needs to get the branches started, meaning overall reduced operator fatigue.
- Variable Speed Roller: Gives the operator the ability to set the initial feeding speed as well as distribute power between the feed roller and grinding wheel, providing maximum operator control.
- Remote Attachment Control (RAC) Kit: Operator can start the loader from the ground without entering or exiting the loader. Eliminates the need for a second operator in the loader.
|Model||Chipper, 5A Standard Flow|
|Blades||4 reversible tool steel blades|
|Continuous Chipping Size||Up to 3" diameter material|
|Discharge Chute (Incl. End Deflector)||Rotates 360 degrees|
|Discharge Chute Height||
|Dual Mounting Locations||Front or right side of loader|
|Feed Table Height||
