Bobcat Mower - 90"

Double tap to zoom



Features

Top Tasks

  • Mow road ditch right-of-ways, golf courses, roughs, athletic fields and large acreages



How It Works

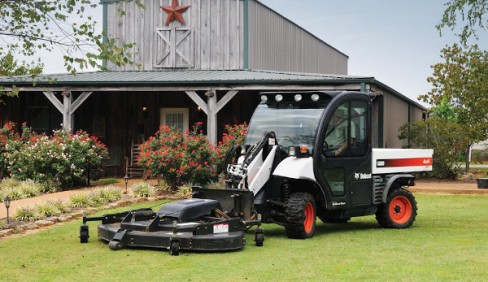

The mower attachment is front-mounted to the carrier for maximum working visibility. Cut materials are discharged under the carrier and to the rear, away from buildings, trees and fences. To control cutting height, the castor wheels can be raised or lowered ranging from 2 to 5.5 in., in adjustable half-in. increments.

Features

  • Rear Discharge (Standard): disperses grass clippings under the carrier, away from buildings, trees and fences.
  • Mulching and Side-Discharge Kits: Available to easily convert the mower to fit the application.
  • Anti-Scalping Wheel: Protects the mower blades from damage by touching the ground first when mowing over uneven terrain. Also, prevents the mower deck from scraping the ground, resulting in longer blade life and consistent cutting height.
  • Castor Wheels: Combined with the attachment frame, the castor wheels allow the mower to oscillate independently of the loader, providing a floating deck to better follow uneven terrain. Also, can be adjusted for different cutting heights, ranging from 2 to 5.5 in.
  • Cutting Blades: Designed for mowing efficiency, the mower attachment features three overlapping cutting blades that eliminate skips for even cutting action.
  • Deck Bracing: Located on the top of the mower to allow for a smooth bottom, delivering improved air and material flow.
  • Belt-Driven: For increased uptime protection, the hydraulic motor powers a single V-belt, eliminating shear pins and related downtime.
  • Front Mount: Mower attachment mounts to the front of the carrier for maximum working area visibility.
  • Safety Shut-Off: Incorporated into the attachment frame. If the mower exceeds 8.5 in. of vertical travel, the safety shut-off turns blade rotation off.
  • Blade Mounting: Dual mounting bolts make blade replacement easy.

Specifications

Model Mower - 90"
Operating Weight 990 lb
Length 75 in
Width 94 in
Height 22 in
Cutting Height Range 2" to 5.5" in .50" increments
Number of Blades 3
Cutting Width 89.5 in
Flow Range 15-22 GPM
Shut-off Travel 8.5 in
Tip Speed @ 22 gpm 16,172 ft/min
