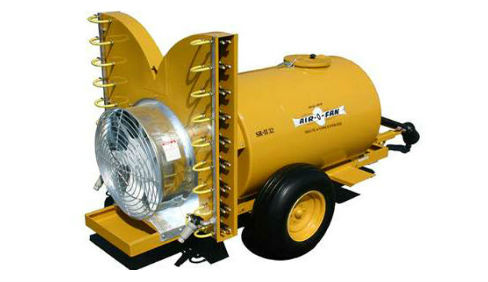

Air-O-Fan SE-30/32

Double tap to zoom



Features

Standard Equipments

  • 26 GPM / 600 PSI Comet© diaphragm pump
  • 32" diameter, 7-blade axial flow steel fan
  • 2-speed gearbox with neutral
  • Heavy duty constant velocity PTO shaft
  • Tank drive shaft with rundown clutch
  • 1" 304 stainless steel mechanical agitation
  • Cable type remote control
  • 304 stainless steel strainers (fill, suction, delivery)
  • Galvanized fan housing
  • Vineyard volute tower
  • Composite nylon adjustable air vanes with specialty valves
  • Teejet© ceramic nozzles
  • 12.5Lx16.1 12-ply ribbed implement tires
  • Heavy duty hubs and spindles
  • Either 400 gallon OR 300 gallon 304 stainless steel tank



Options

  • DK turning and 2-point turning hitches
  • Single or double lip swivel hitches
  • Hydraulic and electric spray control valves
  • 2" and 3" stainless steel fill connections
  • Rear leaf guard
  • Flow monitoring and rate controlling systems
  • Volute-tower door extensions

Specifications

Specifications 400 Gallon

  • Length 13' 4"
  • Width 68"
  • Height 54" (top of tank) / 75" (top of tower)
  • Weight 2,000 pounds
  • Air Velocity 130 mph (approximate)
  • PTO Horse Power Requirements:  45 – 70



Specifications 300 Gallon

  • Length 11'
  • Width 68"
  • Height 56" (top of tank)
  • Weight 1,270 pounds
  • Air Velocity 120 mph (approximate)
  • PTO Horse Power Requirements:  45 – 70
