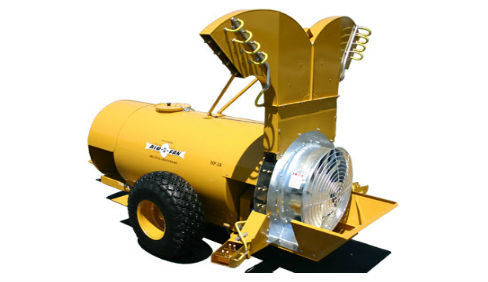

Air-O-Fan G3

Double tap to zoom



Features

Standard Features

  • 500 gallon 304 stainless steel tank
  • 36 GPM / 600 PSI Comet© diaphragm pump
  • 34" diameter, 8-blade axial flow steel fan
  • 2-speed gearbox with neutral
  • Heavy duty PTO shaft
  • Tank drive shaft with rundown clutch
  • 1" 304 stainless steel mechanical agitation
  • Cable type remote control
  • 304 stainless steel strainers
  • Teejet© ceramic nozzles
  • Galvanized fan housing
  • Composite nylon adjustable air vanes with specialty valves
  • 13.5Lx16.1 ribbed implement tires
  • Heavy duty hubs and spindles
  • Either short stack tower with up-spray volutes OR Vineyard volute tower



Options

  • 600 gallon tank upgrade
  • DK turning and 2-point turning hitches
  • 100 GPM / 145 PSI Myers© 2-stage centrifugal pump
  • 53 GPM / 600 PSI Comet© diaphragm pump (IDS 2200)
  • Hydraulic and electric spray control valves
  • 2" and 3" stainless steel fill connections
  • Tank drain plumbed with valve
  • Tree targeting, flow monitoring, and rate controlling systems
  • Rear leaf guard

Specifications

>Specifications Short Stack

  • Length 14' 3"
  • Width 78"
  • Height 62" to 68" (top of tank) / 109" (top of tower)
  • Weight 2,625 pounds
  • Air Velocity 130 mph (approximate)
  • PTO Horse Power Requirements:  75 – 95



Specifications Volute

  • Length 14' 3"
  • Width 78"
  • Height 62" to 68" (top of tank) / 109" (top of tower)
  • Weight 2,425 pounds
  • Air Velocity 130 mph (approximate)
  • PTO Horse Power Requirements:  75 – 95
